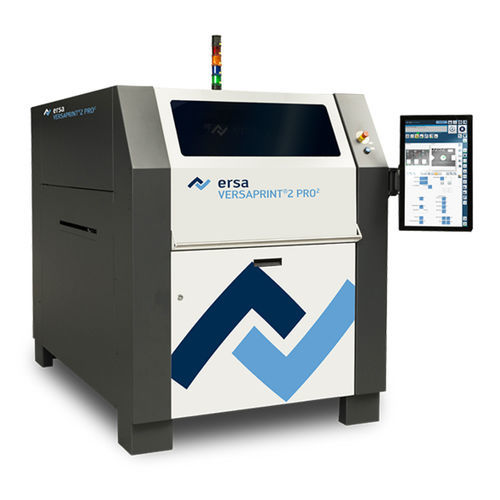

Automatic stencil printer VERSAPRINT 2 PRO²

solder pasteSMTcontinuous

With the fast 2D LIST camera (LIST = Line Scanning Technology), the VERSAPRINT 2 PRO² is particularly suitable for products with high inspection requirements. The system can be upgraded or retrofitted with all options of the VERSAPRINT 2 series. Substrate size (X x Y): min. 50 x 50 mm, max. 680 x 500 mm (inspection area 550 x 500 mm) - Print head: two independent squeegee heads with continuous squeegee force control, squeegee depth stop and pendulum limitation - Cycle time: 10 s + pressure Optional stencil cleaner: 680 x 500 mm - Squeegee force: 0-230 N - Time to set up: less than 10 min Substrate thickness: 0.5-6 mm - Camera: 3D line scan camera for alignment and inspection of substrate and stencil - Product changeover: under 2 min Part clearance: up to 35 mm - Repetition accuracy: +/-12.5 µm @ 6 Sigma - Graphical user interface: touch screen Stencil size: min. 450 x 450 mm, max. 737 x 737 mm adjustable without tools - Printing accuracy: +/-25 µm @ 6 sigma United in efficiency: The VERSAPRINT 2 ULTRA³ is the world's first stencil printer with integrated 3D inspection.
