Linux handheld computer Lumia

ARM® Cortex A53quad-coregigabit Ethernet

Overview

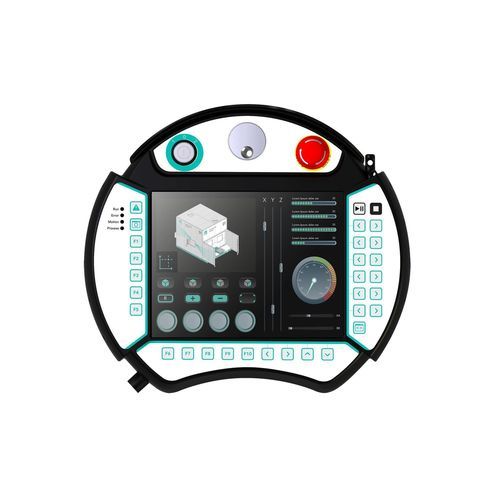

LUMIA handheld HMI is designed for operator control and display when working close to moving machinery. Typical applications include robotic setup, manual teach-in and mobile diagnostics where the operator needs direct command and feedback at the actuator.

Key features

• RK3399 6-core processor (Dual-core Cortex-A72 + Quad-core Cortex-A53)
• 8" 4:3 TFT display with capacitive touch (800x600)
• Operating System: Linux Debian 10
• 3-position dead-man safety switch and integrated emergency button
• Integrated shielded cable with Ethernet and RS232/RS485 serial
• 3 slots for 22 mm electromechanical pushbuttons/indicators (up to 2 mechanical button slots depending on variant)

Details
Connection to the controller is ensured by the integrated shielded cable (Ethernet and serial). Safety functions include an emergency stop and a three-position dead-man switch. HMI pages, membrane keyboard mapping and LED status are configurable via Kreo HMI configuration software. The product is offered as Embedded HMI (Kreo HMI), webHMI (Chromium) or as an Open platform capable of hosting custom applications.

Technical specifications

• Product version: Handheld (landscape)
• Display: 8" 4:3 (800x600), TFT, LED backlight, 16M colors, capacitive touch
• Processor: RK3399 (Dual-core Cortex-A72 + Quad-core Cortex-A53)
• RAM: 2 GB DDR4
• Storage: 16 GB eMMC
• Network: 1 x 1 Gb Ethernet (integrated shielded cable)
• Serial: 1 x RS232/RS485 (integrated)
• USB: 1 x USB 2.0
• Keyboard / I/O: Membrane keyboard (Handheld 31 programmable keys / Touchpad 27 programmable keys), up to 2 mechanical-button slots (references also indicate 3x 22 mm slots)
• Safety: integrated emergency button, 3-position dead-man switch
• Power: 12 - 32 V DC; Typical consumption: 12 W
• Environmental: Operating 0 to +50 °C; Storage -20 to +65 °C; Humidity <90% non-condensing
• Mechanical: 227 x 238 x 101 mm (W x H x D); Weight: 3 kg
• Protection & Certifications: IP65 all-around; CE
• Software options: Kreo HMI (Embedded), Chromium (webHMI), Open platform
