Product overview
Lumia handheld products provide local display and control where the operator must be close to moving machinery. Typical applications include robot teach pendants and manual-motion supervision, allowing simultaneous command input and manual intervention on actuators.

Short description

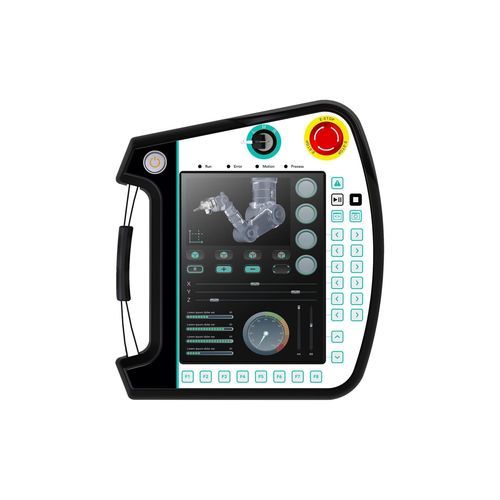

The Lumia Touch Pad is a portable operator panel for close-range supervision and control in robotics and manual-motion environments. It connects to controllers via an integrated shielded cable (Ethernet or RS232/RS485). Safety functions include an emergency stop and an integrated three-position dead-man switch. Video pages, membrane keyboard mapping and LED status are configurable with Kreo HMI software. Available variants: Embedded HMI, webHMI or Open platform for custom applications.

Features

• Powerful RK3399 6-core motherboard (Dual-core Cortex-A72 + Quad-core Cortex-A53)
• 8-inch 4:3 TFT display (600x800) with capacitive touch
• Operating system: Linux Debian 10

Additional features

• 3 slots for 22 mm electromechanical buttons and indicators
• Integrated 3-position dead-man button
• Integrated shielded cable with Ethernet and serial (RS232/RS485)

Versions / Key table (rows)
Header: Embedded - HMI | webHMI | Open
Product version: Touchpad (portrait) | Touchpad (portrait) | Touchpad (portrait)
O.S.: Linux Debian 10 | Linux Debian 10 | Linux Debian 10
Application software: Kreo HMI | Chromium | Open
Display Size: 8" 4:3 (600x800) | 8" 4:3 (600x800) | 8" 4:3 (600x800)
Display technology: TFT | TFT | TFT
Display Backlight: LED | LED | LED
Display Colors: 16M | 16M | 16M
Touch Technology: Capacitive | Capacitive | Capacitive
Bezel / Chassis: ABS - black | ABS - black | ABS - black
Processor: RK3399 (Dual-core Cortex-A72 + Quad-core Cortex-A53) | RK3399 (Dual-core Cortex-A72 + Quad-core Cortex-A53) | RK3399 (Dual-core Cortex-A72 + Quad-core Cortex-A53)
RAM - HMI: 2G DDR4 | 2G DDR4 | 2G DDR4
Mass storage: 16GB eMMC | 16GB eMMC | 16GB eMMC
Ethernet Port - HMI: 1*1Gb | 1*1Gb | 1*1Gb
Membrane keyboard: Handheld 31 programmable keys / Handheld / Touchpad 27 programmable keys | Handheld 31 programmable keys / Handheld / Touchpad 27 programmable keys | Handheld 31 programmable keys / Handheld / Touchpad 27 programmable keys
LEDs: 4 programmable LEDs | 4 programmable LEDs | 4 programmable LEDs
Slots: 2 slots available for mechanical buttons | 2 slots available for mechanical buttons | 2 slots available for mechanical buttons
Security: 3 positions dead-man button | 3 positions dead-man button | 3 positions dead-man button
COM Port: 1x RS232/RS485 | 1x RS232/RS485 | 1x RS232/RS485
USB Port: 1x USB2.0 | 1x USB2.0 | 1x USB2.0
Power Supply (Vdc): 12 - 32V DC | 12 - 32V DC | 12 - 32V DC
Consumption (W): 12W | 12W | 12W
Operating Temperature (°C): 0 to +50 °C | 0 to +50 °C | 0 to +50 °C
Storage Temperature (°C): -20 to +65 °C | -20 to +65 °C | -20 to +65 °C
Humidity: <90% (non condensing) | <90% (non condensing) | <90% (non condensing)
External dimensions (W/H/D) (mm): 227 x 238 x 101 mm | 227 x 238 x 101 mm | 227 x 238 x 101 mm
Weight (kg): 3 kg | 3 kg | 3 kg
Protection degree: IP65 all-around | IP65 all-around | IP65 all-around
Certifications: CE | CE | CE

Technical specifications

• Product family: Lumia handheld - Touch Pad
• Display: 8" 4:3 (600x800), TFT, LED backlight, 16M colors, capacitive touch
• Processor: RK3399 (dual-core Cortex-A72 + quad-core Cortex-A53)
• RAM: 2GB DDR4 (HMI)
• Mass storage: 16GB eMMC
• Network: 1 x 1 Gb Ethernet (integrated shielded cable)
• Serial: 1 x RS232/RS485 (integrated cable)
• USB: 1 x USB 2.0
• Power supply: 12 - 32 V DC
• Power consumption: 12 W
• Operating temperature: 0 to +50 °C
• Storage temperature: -20 to +65 °C
• Relative humidity: <90% (non condensing)
• Bezel / chassis: ABS - black
• Physical dimensions (W x H x D): 227 x 238 x 101 mm
• Weight: 3 kg
• Protection degree: IP65 all-around
• Safety features: emergency stop, integrated 3-position dead-man switch
• Slots: 2 (or 3 depending on variant) available for mechanical / electromechanical buttons and indicators (22 mm diameter)
• Keyboard / LEDs: membrane keyboard options (Handheld 31 programmable keys; Handheld/Touchpad 27 programmable keys), 4 programmable LEDs
• Software options: Embedded HMI with Kreo HMI, webHMI with Chromium, or Open platform for custom applications
• Certifications: CE
