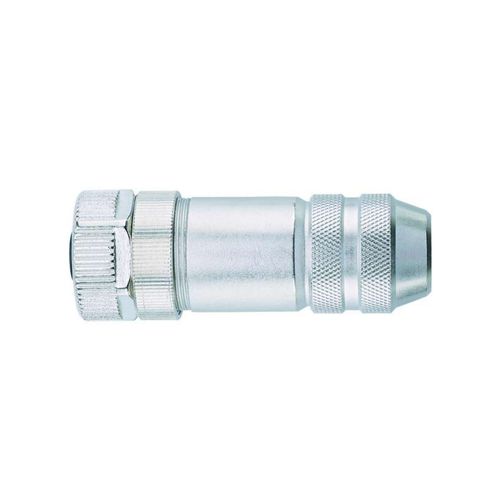

Field-attachable connector WAKCS8K dataDINcircular
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- DIN
- Shape
- circular
- Connection type
- female, screw-locked
- Size
- M12
- Material
- zinc
- Protection class
- IP67
- Other characteristics
- IEC, field-attachable
- Primary current
2 A
- Voltage
60 V
Description
Connector female, M12x1, straight
Number of pins 8
Coding A
Rated voltage
Insulation resistance
≥108 Ω
Resistance 3 mΩ
Ambient temperature product -40°C...+85°C
Contact material Metal, CuZn, gold-plated
Contact-carrier material Plastic, PA, BK
Grip body material Zinc die-cast, nickel-plated
Coupling nut material Metal, GD-ZN, nickel-plated
Shielding Yes, 360°
Connecting cross-section max. 0.75 mm²
Cable outlet 6...8 mm
Connecting type Screw-/clamp contact
Standards IEC 61076-2-101
Degree of protection (mounted) IP67
Mechanical life-cycle >100 mating cycles
Degree of pollution 3
