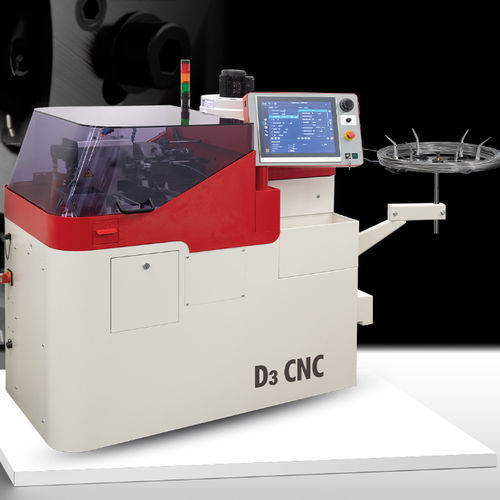

CNC automatic lathe D3-D63-spindlehigh-productivitycompact
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of spindles
- 3-spindle
- Performance
- high-productivity
- Other characteristics
- compact
- Diameter
4 mm
(0.16 in)- Spindle speed
Max.: 18,000 rpm
(113,097.336 rad.min-1)Min.: 600 rpm
(3,769.911 rad.min-1)- Nominal power
4 kVA
(5.4 hp)- Coolant capacity
70 l
(18 gal)- Overall lenght
1,360 mm
(54 in)- Overall width
750 mm
(30 in)- Overall height
1,560 mm
(61 in)- Weight
850 kg
(1,874 lb)
Description
Created to simplify production
3 tools for more flexibility
Even faster
ESCO guiding bush or standard commercial guiding bush
Small flor space
Very high profitability thanks to
Very short turning times thanks to the proximity of tools
24 hours production facilitated by coil feeding
No lost time due to bar loading
Man-hour gain in material feeding
Limited waist of material ends
Low maintenance costs
