managed network switch / 10/100BaseT(X) / DIN rail mounted / redundant

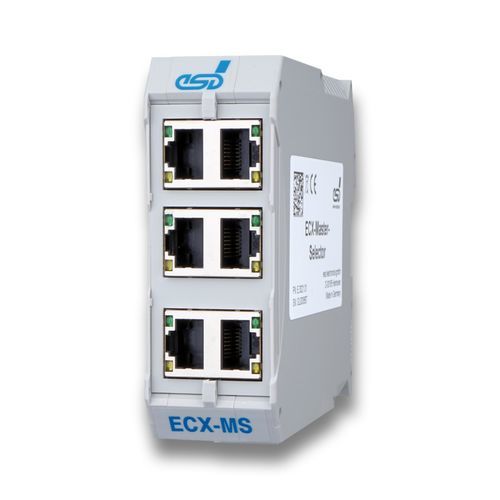

ECX-Master-Selector

{{requestButtons}}

Characteristics

  • Type:

    managed

  • Number of ports:

    10/100BaseT(X)

  • Mounting:

    DIN rail mounted

  • Other characteristics:

    redundant, compact, modular

  • Applications:

    industrial

Description

Dual Ethernet Master Selector for two redundant EtherCAT®, Sercos III, PROFINET®, ... -Masters

Designed to build redundant Ethernet based Master Systems like EtherCAT, Sercos III, PROFINET, ...:

•One network (EtherCAT, Sercos III, PROFINET, ...) with cable redundancy
connected to the primary or the secondary master by a simple control signal
• Ideal to build up a redundancy at the Master side as extension to EtherCAT
Technology Group Standard (ETG) or Sercos III Standard

Compatible to Ethernet based Systems:

• Flexible Application range to switch one network between two Masters / PCs
for all Ethernet based systems or field bus standards like EtherCAT, Sercos
III, Profinet, etc. with 100BASE-TX

Optically isolated Switching Signal:

• The switching signal is optically isolated
• Characteristic according to DIN EN 61131-2, Type 3
• DIN-EN carrier rail mounting
• Ethernet physics according to IEEE 802.3
