Monitoring software DLMS-BS

calibrationprocessWindows

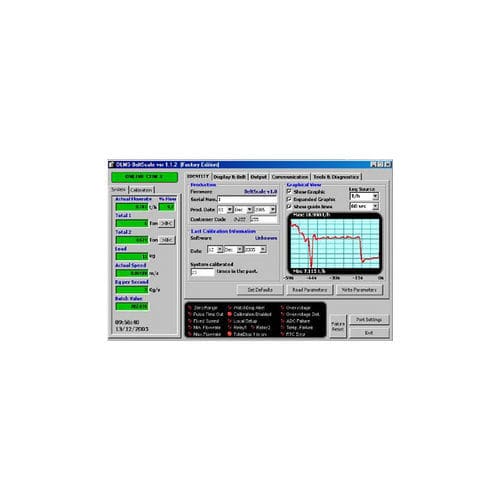

DLMS_BS, provides access and change options to all parameters of belt scales using the Modbus protocol. Whereby calibration, totalization reset, password change, and output settings can be done remotely. Flow rate (t / h), Flow %, Total 1 (t), Total 2 (t), scale weight (kg), speed (m / s), the load per second (kg / s) and batch values can be monitored. Except for the standard recording features, it is possible to adjust recording period as seconds, minutes and hours. Recording variables can be select as each (hours, t/h, total1, total2, m/s, status, kg/s and flowrate %). Graphic view can be in the range of 5 seconds to 10 minutes (t / h, total1, total 2, m / s, kg / s) . Features; Access to device data Logging Feature Graphics Support System Requirements; Processor - Pentium 233 MHz Ram - 32 MB (larger Ram is recommended) Disk Capaity - 10 MB (larger capacity for data logging is required.) Screen - 800x600 High color or true color Connection - Serial port Interface - USB/RS232 or RS232/RS485 commutator Driver - CD-ROM(only for setup) Operating System - Windows 95/98/NT/2000/XP/7/8
