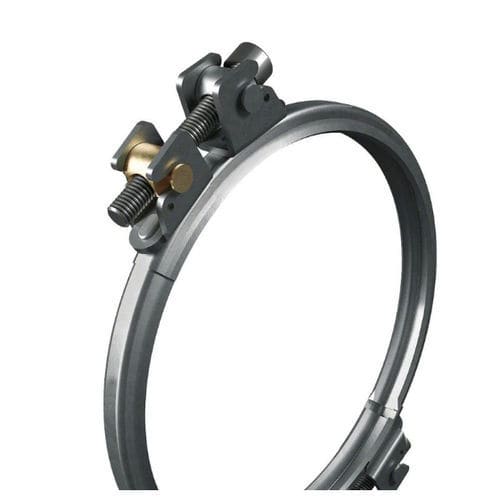

Bolt tube clamp 2B series

galvanized steelstainless steel

The two-part clamping ring for use with flanged sealing ring for connecting pipes with wall thicknesses of 1,2 and 3mm is regarded as an all-rounder and is the best-selling ESKATE® Clamping - ring. It is universally applicable and is characterized by its special swivel-joint technology, even in difficult to reach places, as particularly easy to mount. Furthermore, this clamping ring is leak-free in the diameters of 80 - 630mm and explosion-proof to up to 3 bar. Last but not least, the two-part clamping ring for use with flanged sealing ring can be opened and closed several times, quickly and simply, thanks to its special yellow galvanized, rotating part, without the screw being lost during assembly. The two-part ESKATE® clamping ring for use with a flange sealing ring is produced with one profile. Depending on the pipe construction, differently thick flange sealing rings are used for the connection of 1,2 & 3mm pipe wall thicknesses in combination with the clamping ring. The clamping ring profile is always the same. Very short lead times due to all year round availability from stock. *Custom and non-standard factory sizes available on request.
