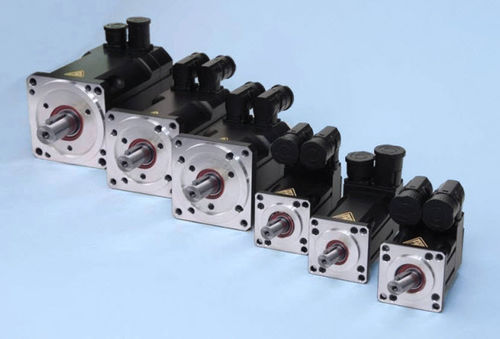

Brushless servomotor MR 63 series

AChollow-shaftcompact

AC servo motors with rated torques between 0.25 and 54 Nm and five different flange sizes, rated speeds up to 6,000 r.p.m., other speeds on request. All motors are available with brakes. Main Characteristics ▪ maintenance-free, since brushless ▪ high dynamics ▪ compact dimensions due to high-performance neodymium magnet material ▪ built-in resolver for sinusoidal commutation, other position sensors as options ▪ IP 64 protection (shaft/flange: IP 54), optional IP 65 or IP 67 ESR Drive System Packages MR 63 servo motors are adapted to the digital and analog ESR servo drives. Servo drives, servo motors, position sensors, gearboxes, and brakes are available as drive system packages. For further information, see the back of this data sheet. Applications Positioning and feed movements with high dynamics and accuracy in ▪ handling and assembly systems ▪ electronics production machinery ▪ semiconductor production machinery ▪ measuring and testing machinery ▪ machine tools and metal working machinery ▪ test stands ▪ packaging machinery ▪ textile machinery ▪ plastics processing machinery ▪ coiling machinery and many other applications
