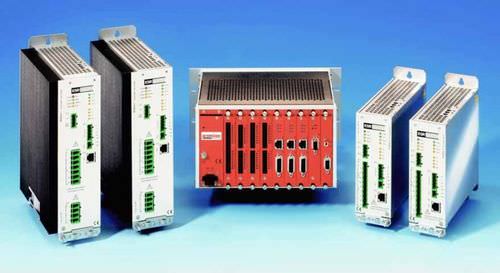

Multi-axis motion controller TrioDrive C

servomotorDClinear

Multi-Axis Servo System The multi-axis servo systems consists of motion control modules by Promicon Systems and servo power modules by ESR. It is particularly suited for coordinated multi-axis applications, e. g. in handling and assembly systems or pick+place applications. What is so special about the multi-axis servo system by ESR is: You can use any type of servo motor with it, e. g.: ■ AC servo motors ■ DC servo motors ■ linear motors ■ solenoid motors ■ direct drives ■ torque motors ■ 2- and 3-phase motors ■ 1 to 50 pole pairs Motion Control Modules ■ for coordinated motions of multiple axes ■ with integrated digital position and velocitiy control for highest accuracy ■ integrated in the SYSTEM-90E controller system by Promicon Systems ■ highest flexibility and dynamics due to multi-tasking operation and minimum reaction times ■ suitable for various position feedback systems (resolvers, incremental encoders, etc.) ■ connection to the servo power modules via uniform pLINK interface ■ integral system diagnostics with alarms and log file recording ■ digital parameterization, programming, and monitoring of the system with just one software ■ integration in higher-level controller systems via Profibus, Interbus, OPC, or pNET (RS 232) Servo Power Modules ■ for flexibly driving various motor types ■ compact design for direct mains connection ■ easy connection to the motion control module with standard RJ45 cable ■ several devices can be mounted directly next to each other (without lateral gap) ■ suitable for servo motors by ESR Pollmeier or other manufacturers ■ for motor powers from 100 W to 11 kW
