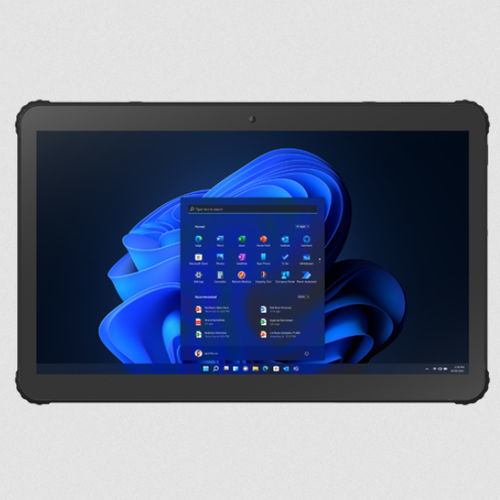

Windows 11 Pro tablet MW-130

Windows 11 IoT EnterpriseAndroidLinux

Highlights
The MW-130 Rugged Tablet PC combines a 13" sunlight-readable IPS display, IP65 ingress protection and MIL-STD-810H drop/shock resistance with CPU options up to Intel® Core™ i3-N305 or Qualcomm® QCS6490. It supports Windows, Linux or Android for versatile use in manufacturing, public safety, healthcare and industrial field operations.

Features

• 13" IPS LCD, 2880 × 1920 resolution, 500 nits
• Sunlight-readable display with chemically hardened front glass
• Baseline: Intel® Alder Lake N200; optional Intel® Core™ i3-N305 or Qualcomm® QCS6490
• Standard: 8GB LPDDR5, 128GB flash (configurable)
• OS: Windows 11 Pro / Windows 11 IoT / Linux; optional Android
• IP65 rated for water and dust protection
• MIL-STD-810H certified for drop, shock and vibration; 5 ft drop survivability
• Intel® Wi‑Fi 6E (AX210), Bluetooth 5.2; optional 4G LTE (M.2)
• Rear pogo-pin modules: CAC reader, RFID/NFC/UWB, high-precision GPS

Slim but Rugged Design for Portability
The MW-130 features a slim 13.7 mm profile and a lightweight chassis (~1.1 kg) that preserves full rugged performance. Its form factor is designed for easy handling and transport in construction sites, logistics, field inspection and emergency response.

Performance
Equipped with Intel® Alder Lake N200 (max turbo 3.7 GHz, 6 MB Smart Cache) in baseline SKUs, the platform ensures smooth multitasking for field applications. Configurations with Intel® Core™ i3-N305 or Qualcomm® QCS6490 are available for higher compute or heterogeneous workloads.

Versatile Operating Systems
Supports Windows 11 Pro & IoT and Linux as standard; Android is available as an option to accommodate specific application stacks and integrations.

Rugged and Field-Ready
Designed for harsh environments with IP65 sealing, MIL-STD-810H certification for shock and vibration, drop protection up to 5 ft and an operating temperature range of -10°C to 50°C to ensure reliable operation on site.

Sunlight-Readable Display and Impact Protection
13" IPS panel (2880 × 1920) at 500 nits brightness with chemically strengthened top glass for impact resistance and reliable outdoor readability.

Connectivity and I/O
Includes Intel® Wi‑Fi 6E (AX210), Bluetooth 5.2 and optional 4G LTE. I/O: 2× USB-C (charging / USB 3.1 / display), 14-pin docking connector, magnetic charger jack, optional 10-pin PoGo rear connector, SIM slot and multiple sensors.

Battery and Power
Integrated 2S1P 7.6V 4100mAh (31Wh) battery, magnetic charging connector and optional external battery support to extend uptime in field operations.

Integrated 2D Barcode Scanner (Optional)
Optional built-in 2D barcode/QR scanner streamlines inventory, asset tracking and patient or asset workflows without separate handheld scanners.

Rear Expansion and Customization
Rear expansion slot supports modular additions (RFID, NFC, UWB, high-precision GPS, CAC reader) for OEM/ODM customization to meet industry-specific requirements.

Technical Specifications

• Ruggedness: IP65
• Ruggedness: Drop: MIL-STD-810H (Method 516.8)
• Ruggedness: Shock: MIL-STD-810H (Method 516.8)
• Ruggedness: Vibration: MIL-STD-810H (Method 514.8)
• Processor: Intel® Alder Lake N200 (max turbo 3.7 GHz, 6 MB Smart Cache); optional Intel® Core™ i3-N305 / Qualcomm® QCS6490
• GPU: Intel® UHD Graphics
• Memory: 8GB LPDDR5 (baseline)
• Storage: 128GB flash (baseline)
• OS: Windows 11 IoT / Windows 11 Pro / Linux; optional Android
• Security: TPM 2.0
• Display: 13" IPS, 2880 × 1920, 500 nits, 10-point capacitive touch
• Top Glass: Chemically hardened for impact resistance
• Communications: Intel® Wi‑Fi 6E AX210, Bluetooth 5.2, optional 4G LTE (M.2)
• Power: AC adapter 110–220V AC input, 12V/3A DC output, magnetic connector
• Battery: 2S1P 7.6V 4100mAh (31Wh)
• Sensors: G-sensor, ambient light sensor
• Audio: 2× speakers, 1× built-in microphone
• Cameras: Front 5 MP; Rear 13 MP AF
• Ports: 2× USB-C (charging/USB 3.1/display), 1× 14-pin docking (USB 2.0 & charging), magnetic charger jack, optional 10-pin PoGo rear connector, SIM slot
• Buttons: Power (hold 10s to reset), Volume ±, 1 programmable button
• Optional: Built-in 2D barcode scanner
• Indicators: Charging LED, Power LED
• Dimensions: 297.9 × 219.2 × 13.7 mm
• Weight: approx. 1.1 kg
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 60°C
• Humidity: 10%–90% non-condensing
• Certifications: FCC, CE, IATA; medical certification availability on request
