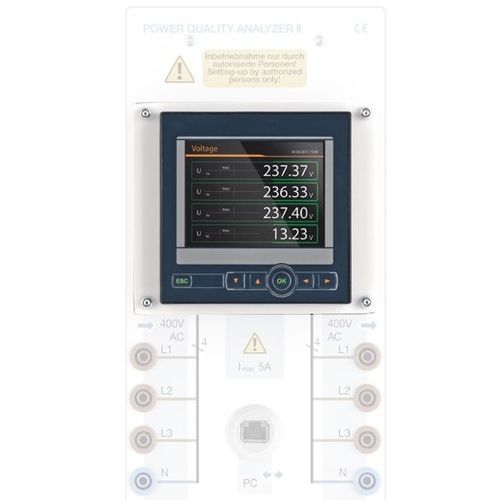

Power measuring device

voltagepower factorpower quality

The advantages of our didactic system are: Determination of essential electrical parameters as active, apparent and reactive power (of e.g. light fittings) Measurements of the network load caused by harmonics (3-phase presentation) Measurements of power factor Lambda and cosφ Determination of electrical parameters of electric motors Use and application of energy meters Energy study of various consumers Vectorial presentation of three-phase systems Oscilloscope function for voltage and current Intelligent Measurement Technology Measuring of essential electrical parameters e.g. measuring von active power, reactive power und apparent power of light fittings e.g. measuring the network load caused by harmonics and produced by the switching power supply of the laptop e.g. measuring the power factor Lambda and cosφ when operating a frequency converter e.g. determining the electrical parameters of electric motors and transformers The webserver can be used for presenting and recording relevant parameters of the Power Quality Analyzer II in tables, data loggings and bar charts by: PC projector iPad Smartphone Whiteboard Additionally, complex interrelations of currents, voltages, types of power (apparent, active, reactive power), cosφ and harmonics are represented graphically with well-known consumers. The measuring device is particularly used in in experiment manuals on the subjects: Lighting technology Transformers Electric drives etc.
