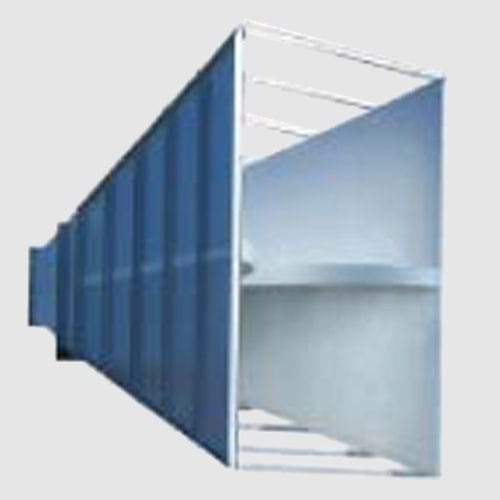

Broadband antenna 3112
hornridged waveguidewaveguide

broadband antenna
broadband antenna
broadband antenna
Add to favorites
Compare this product


Characteristics

Network
broadband
Type
horn
Other characteristics
waveguide, ridged waveguide
Applications
vehicle
Frequency

Min.: 100 MHz

Max.: 1,000 MHz

Description

ETS-Lindgrens Model 3112 Double-ridged Waveguide Horn is a linearly polarized broadband antenna providing high gain and excellent VSWR characteristics over a broadband frequency range of 100 MHz to 1 GHz. The antenna is especially effective for generating high electromagnetic fields with relatively low power input. The 3112s high gain makes it suitable for generating the high fields (200 V/m) necessary per the ISO 11451-2 and SAE J551/11 full-vehicle automotive radiated immunity standards with less than 2 kW. Additionally, since the Model 3112 is a double-ridge waveguide horn, it is the accepted antenna for MIL-STD-461E, bringing the desirable performance of this type of antenna lower frequencies. Like other double-ridged waveguides in this series, the Model 3112 is precision manufactured from aluminum, making it durable and relatively lightweight. To maximize performance, a type N connector is used (other connectors available upon request). Each antenna is individually calibrated at our A2LA accredited test lab and comes with actual factors and a signed Certificate of Conformance. A two-year warranty is included. Key Features Low VSWR Uniform Gain Continuous Power Handling up to 2000 W Physical Specifications Height: 144 cm (56.69 in) Length: 195.6 cm (77.01 in) Width: 186.6 cm (73.46 in) Weight: 86.1 kg (189.82 lb) Electrical Specifications Impedance (Nominal): 50 Maximum Continuous Power: 800 W Maximum Power: 2 kW Pattern Type: Directional Polarization: Linear VSWR: <1.6:1 Product Options 109621 Positioning System with pneumatic polarization
