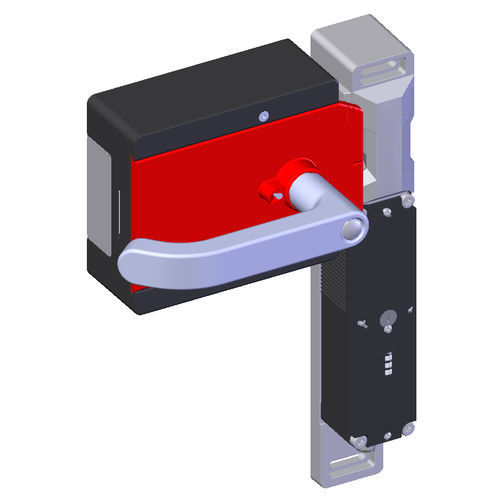

Handle lock MGBS-P-L1H-AP-U-L-SA-161567

electromechanicalfor doorzinc

MGBS set AP, M12, door hinge on left • Locking module with handle module • suitable for doors hinged on the left • Short circuit monitoring • 2 safety outputs (semiconductor outputs) • Up to category 4 / PL e according to EN ISO 13849-1 • With plug connector M12 • Unicode • Door position monitoring output Unicode evaluation Each handle module is highly coded (unicode). The locking module detects only handle modules that have been taught-in. Additional handle modules can be taught-in. Only the last handle module taught-in is detected. Guard locking type MGBS-L1 Guard locking actuated by spring force and power-ON released (closed-circuit current principle).
