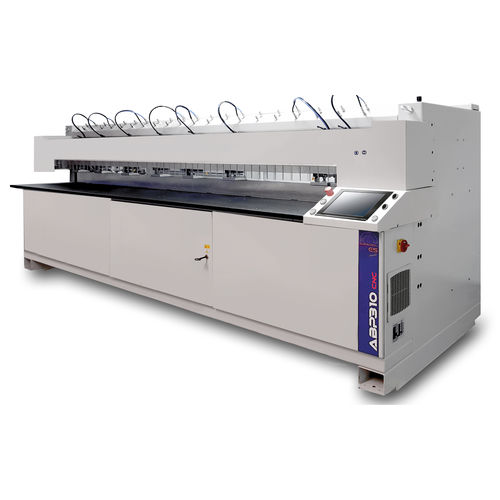

Edge polishing machine ABP310 CNC

for PMMAsheetfor flat parts

Professional CNC-controlled large format edge polishing machine. CNC CONTROL CNC control with touchscreen. Material library with recommendations for cutting values and tool selection. Extensive database with information about tool properties, material types and finish options. MACHINE CORE AND FRONT REFERENCE BAR The core of the machine is made of UHPC (technical concrete), which gives the machine extreme rigidity and absorbs vibrations up to 95%. The front reference bar has anchor points that keep it stably in place. If necessary, these points can be readjusted to ensure a constant depth of cut. MILLING/POLISHING UNIT CNC controlled millin/polishing unit. Automatic adjustment of the tilting value and milling depth as well as the position of the clamping bridge. Tilting range from 0 ° to + 63 °. Anti streaping system. ATTENTION: an optional cloth polishing unit is no longer available. The new included antistreaking system makes it unnecessary WORK AREA The work area is illuminated and save by a transparent safety curtain. MULTI FUNCTION TABLE The table design reduces the formation of streaks on the milled and polished workpiece surface. It is equipped with anchor points that can be used for fixing additional lateral stops or custom devices. TOOLS The machine is delivered with a milling / polishing head types EURACRYL ES for 4 cutters. It can be used to produce glossy or satin surfaces on PMMA, PC, PETG, SAN, etc. as well as mixed materials PMMA with paper or aluminum.
