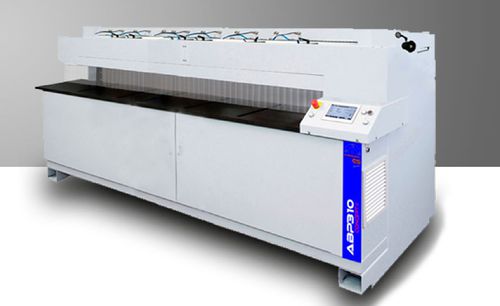

PMMA polishing machine ABP310 concept II

satincuttingCNC

CNC control with touchscreen. Material library with recommendations for cutting values and tool selection. Calculation of all values for tilting, milling depth, etc. MACHINE CORE AND REFERENCE BAR The core of the machine is made of UHPC (technical concrete), which gives the machine extreme rigidity and absorbs vibrations up to 95%. The front stop has anchor points that keep it stably in place. If necessary, these points can be readjusted to ensure a constant depth of cut. TILTING POLISHING UNIT The milling and polishing unit can be tilted in a range of -3 ° to +48 ° with an accuracy of 0.1 °. The adjustment of the angle is fast and safe. WORK AREA The work area is illuminated and save by a transparent safety curtain. MULTI FUNCTION TABLE The table design reduces the formation of streaks on the milled and polished workpiece surface. It is equipped with anchor points that can be used for fixing additional lateral stops or custom devices. TOOLS The machine is delivered with a milling / polishing head types EURACRYL ES for 4 cutters. It can be used to produce glossy or satin surfaces on PMMA, PC, PETG, SAN, etc. as well as mixed materials PMMA with paper or aluminum.
