Solid carbide milling tool EURACRYL PL-FK-2
end millfinishingdeburring

solid carbide milling tool
solid carbide milling tool
solid carbide milling tool
solid carbide milling tool
Add to favorites
Compare this product


Characteristics

Geometry
end mill
Construction
solid carbide
Type
finishing, deburring
Material
carbide
Treated material
for PMMA, for polycarbonate, for aluminum
Other characteristics
for high-gloss processing, for CNC machines, 2-flute
Diameter

8 mm
(0.31 in)

Length

50 mm
(1.97 in)

Rotational speed

Min.: 8,000 rpm
(50,265.48 rad.min-1)

Max.: 36,000 rpm
(226,194.67 rad.min-1)

Description

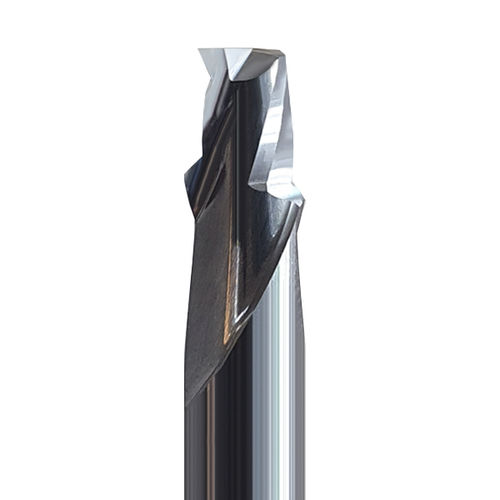

The EURACRYL PL-FK-2 tool has a main cutting edge in SUPERFINISH® quality for the vertical edge of the material and 2 additional cutting edges with 45 ° degrees that create an approx. 0.25 mm protective chamfer on the upper and lower corners. There is no need to manually deburr the workpieces. Carbide end mill with 45° additional cutting edge to deburring the upper and the lower edges of the material Clockwise turning – pulling upwards – vertical cut Solidd carbide end mill in SUPERFINISH quality with 2 additional 45 ° bevel cutters at the top and bottom for processing of acrylic (PMMA), polycarbonate and other glossy or transparent plastics as well as light metals. For processing vertical surfaces with an additional edge break above and below. Suitable as finishing tool. Right spiraled with chip removal upwards.

Catalogs

No catalogs are available for this product.

See all of EURACRYL GmbH‘s catalogs
