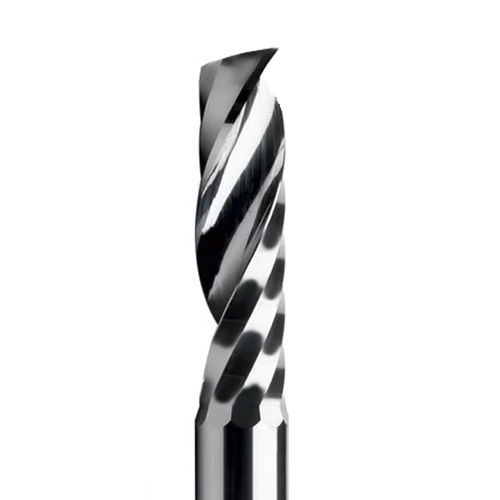

Superfinishing milling tool EURACRYL PL-PF
end millsolid carbidecarbide

Superfinishing milling tool - EURACRYL PL-PF - EURACRYL GmbH - end mill / solid carbide / carbide
Superfinishing milling tool - EURACRYL PL-PF - EURACRYL GmbH - end mill / solid carbide / carbide
Superfinishing milling tool - EURACRYL PL-PF - EURACRYL GmbH - end mill / solid carbide / carbide - image - 2
Superfinishing milling tool - EURACRYL PL-PF - EURACRYL GmbH - end mill / solid carbide / carbide - image - 3
Add to favorites
Compare this product

Characteristics

Geometry
end mill
Construction
solid carbide
Material
carbide
Treated material
for PMMA, for polycarbonate, for aluminum
Other characteristics
for high-gloss processing, with cylindrical shank, superfinishing
Diameter

Min.: 1 mm
(0.04 in)

Max.: 12 mm
(0.47 in)

Length

Min.: 38 mm
(1.5 in)

Max.: 100 mm
(3.94 in)

Rotational speed

Min.: 8,000 rpm
(50,265.48 rad.min-1)

Max.: 24,000 rpm
(150,796.45 rad.min-1)

Description

The EURACRYL PL-PF tool was specially developed for glossy materials like PMMA, PC, etc. The blade is extremely sharp, which prevents the edge of the material from melting when working with materials such as PC. The grove for the chips is polished to prevent chips from sticking. Depending on the quality of the material and the working conditions, this tool in SUPERFINISH® quality can produce a homogeneous and glossy surface. Carbide end mill for glossy finish Clockwise turning – pushing down – vertical cut Solid carbide end mill in SUPERFINISH quality for the processing of acrylic (PMMA), polycarbonate and other glossy or transparent plastics as well as light metals. For processing vertical surfaces (vertical cut). Roughing and finishing tool. Left spiraled with chip removal down.
