Hardness test indenter KNOOPH1

for Knoop hardness test

Overview

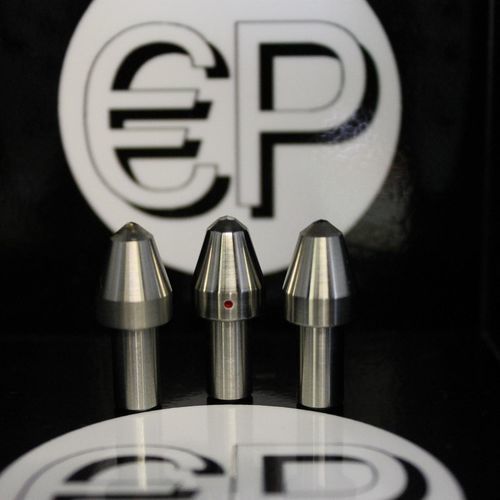

The KNOOPH1 is a macro Knoop diamond testing indenter designed for Knoop hardness testing on metals and hard materials. It is supplied with the option of a UKAS calibration certificate or without certificate, allowing integration into lab or production testing chains.

Dimensions
Head length: 13 mm / Shank diameter: 6.35 mm

Calibration and product details

• Available with either UKAS certificate or no certificate.
• Calibrated to EN ISO 4545-2 & ASTM E92 standards.
• Stainless steel holder/body to prevent tarnishing and corrosion.
• High-quality diamonds individually selected to ensure consistent impressions and long tool life.

Additional information
Test type: Knoop
Compatible testing machines: Future Tech, Matsuzawa

Technical specifications

• SKU / Model: KNOOPH1
• Test type: Knoop
• Head length: 13 mm
• Shank diameter: 6.35 mm
• Holder/body material: Stainless steel
• Calibration standards: EN ISO 4545-2, ASTM E92
• Certification options: UKAS certificate available or no certificate
• Diamonds: Individually selected, high quality for extended tool life
• Compatible testing machines: Future Tech, Matsuzawa
