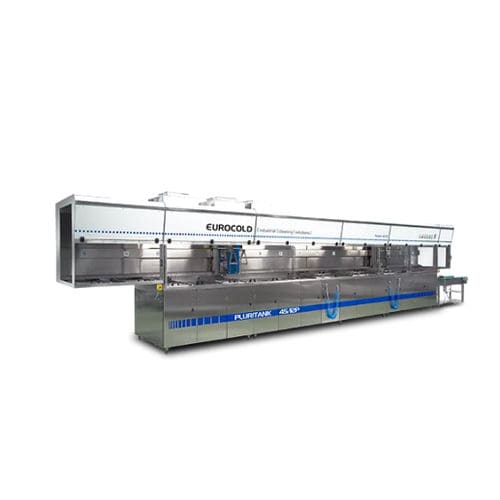

Ultrasonic cleaning machine PLURITANK 10/12P

water-based detergentautomaticindustrial

Ultrasonic cleaning using water-based detergents. Composed of 12 working positions. Individual tank volume is 10 litres, 5 minute cycle time. APPLICATION SECTORS ahestetic treatment as CHROMATE etc. cooking utensils, cookware, cutlery, crystalware etc. handles and metal accessories for forniture and doors health care accessories such as prosthetics and various utensils moulds for plastic casting and die-casting optics (lenses, sun lenses etc.) semiconductors spectacle frames surface coatings such as PVD, CVD, PECVD etc. taps and fittings watches, jeweller, fine mechanical parts, etc The machine is made of AISI 304 stainless steel (EN 1.4301) throughout. PLURITANK is a conventional industrial multi-tank inline ultrasonic cleaning plant. The plant is built to customer specifications only. The machine works with water-based detergents and has 12 working positions consisting in cleaning and rinsing tanks and drying ovens. The cleaning and rinsing tanks have a capacity of 10 litres each. The cleaning tanks are equipped with agitation, ultrasound, heating elements to heat the washing liquid, circulator pump and filter. All the rinsing tanks are designed to work in contraflow cascade, the final rinsing tank is equipped with a slow movement lifting system designed to allow drip drying of the washed products. The products are then dried with hot air in a feed-through oven. The PLURITANK 10/12P industrial cleaning plant features 5 cleaning tanks. On request, the cleaning tanks can be made so that they are replaceable in a matter of minutes. All the industrial cleaning processes are customized in accordance with the products, as are the operating parameters of each single tank.
