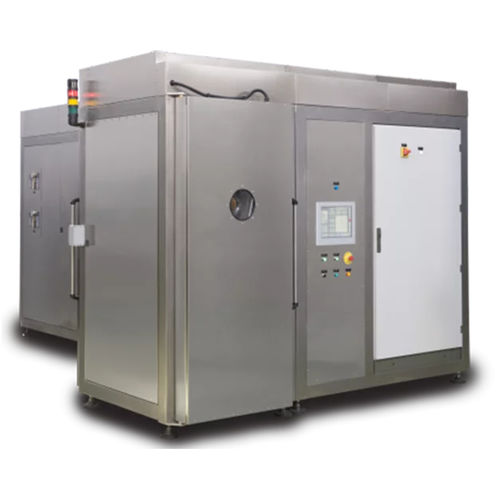

Single-chamber cleaning machine TermoVide V500/CR9.3

ultrasonicimmersionwater-based detergent

Single chamber industrial cleaning machine, 2 detergents, for clean rooms Cleaning technology with water and water-based detergents. Cleaning chamber with usable volume of 525 litres and an 800 kg payload The machine is made of AISI 304 stainless steel (EN 1.4301) throughout. The single chamber machine features very compact dimensions. TermoVide® V500/CR9.3 heralds a new generation of industrial cleaning machines. The machine works with water-based detergents. The cleaning process is performed in a single tank: the single chamber. The TermoVide® V500/CR9.3 single chamber machine is designed for use in clean rooms. The single chamber has two hermetic openings: the loading hatch, which is located in the grey zone, and the unloading hatch in the clean room. The TermoVide® V500/CR9.3 ultrasonic cleaning machine uses two detergents. The single chamber has useful dimensions of 800W x 1200D x 875H mm, a working volume of 525 litres, and an 800 kg payload. Phases available in the cleaning process: VCA Vacuum and controlled atmosphere insR-uDi/T Initial spray rinse, non-recirculated recycled demineralized water or mains water insR-r-uDi/T Initial spray rinse, recirculated recycled demineralized water or mains water psW-De1 non-recirculated spray pre-cleaning, detergent 1 psW-r-De1 recirculated spray pre-cleaning, detergent 1 sW-De1 spray cleaning, detergent 1 immW-US-De1 Immersion, ultrasonic cleaning, detergent 1 sR-uDi1 Spray rinse, non-recirculated recycled demineralized water sR-r-uDi1 Spray rinse, recirculated recycled demineralized water immW-US-De2 Immersion, ultrasonic cleaning, detergent 2 sR-uDi2 Spray rinse, non-recirculated recycled demineralized water
