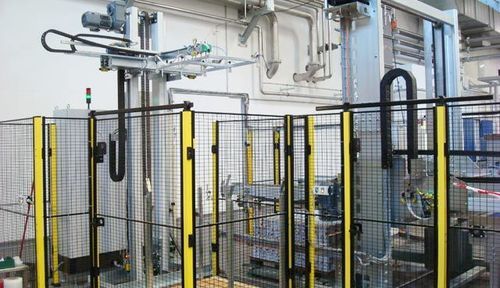

Layer depalletizer Delus 600

low level infeedsweep-off layerfor bottles

Overview
Universal and flexible depalletiser system for mid- to high-range throughput with low container discharge for destacking various containers such as glass jars, cans, drums, and glass, plastic and cardboard bottles. Manual or fully automatic input and output of full and empty pallets.

Functional description
The pallet to be destacked is placed manually on the depalletising station. If fitted, the automatic intermediate layer unit removes the top layer and stores it in a dedicated magazine. A push-off carriage then traverses the pallet, pushing the container layer onto the discharge table which feeds containers to the separation conveyor. After unloading, the unit is ready for the next pallet.

Key features

• Sturdy steel construction, fully enclosed
• Siemens PLC with large colour touchscreen
• Motorised layer centring with position sensors
• Automatic monitoring of key functions for process reliability
• Servo drives for high positioning accuracy
• Suitable for Euro, industrial, Düsseldorf and CHEP pallets
• Energy‑efficient drives
• Operator-editable depalletising programs
• Low maintenance
• Optional automatic intermediate layer unit
• Automatic empty-pallet feed from customer pallet store or integrated adjustable magazine

Key technical data

• Performance: up to 50,000 containers/h (e.g. small food tins)
• Pallet dimensions: 600×800 to 1300×1300 mm
• Stack height: up to 2500 mm (text); maximum stack height 2400 mm (table)
• Intermediate layer max: 1400×1400 mm (table: 1200×1200 mm)
• Intermediate layer magazine: stack height max. 1200 mm on pallet
• Discharge height of destacked containers: 900–1500 mm (standard); low discharge version: 900 mm
• Compressed air: 6–7 bar, unoiled
• Operating voltage: 3 × 400 V, 50 Hz
• Power consumption: approx. 23 A

Characteristics / specifications

• Model: Delus 600 (low-discharge version)
• For glass jars, cans, bottles (glass, plastic, cardboard)
• Optional automatic intermediate layer removal
• Siemens PLC and servo drive technology
• Supports Euro, industrial, Düsseldorf and CHEP pallets (max. 1200×1200 mm)
