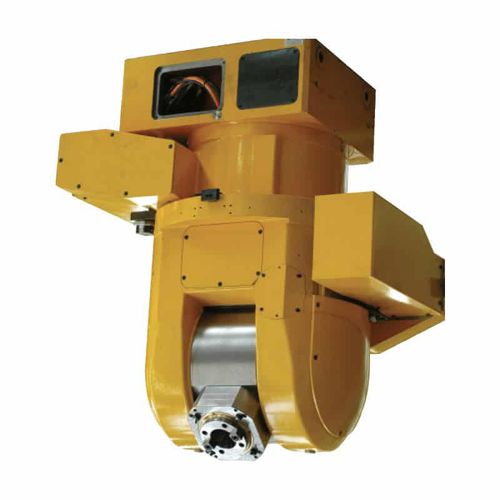

Angle machining head KW2 HT

Fork heads KW2 HT Tilting head with continuous axes. Worm&gear transmission with backlash reduction device Additional information Tool taper [rif] BT 50, ISO50 Plate locking force [N] 20000 Spindle nose - pivot point distance [mm] 278 Power [Kw] 37 Max. speed [rpm] 3000 Max torque on screw [Nm] 1500 “A” axis Rotation angle with encoder ±105° “A” Axis Ratio 780:1 “A” axis Clamping pressure [bar] 180 “C” axis Rotation angle with encoder ±185° “C” Axis Ratio 780:1 “C” Axis Clamping pressure [bar] 180 Weight [Kg] circa 1100
