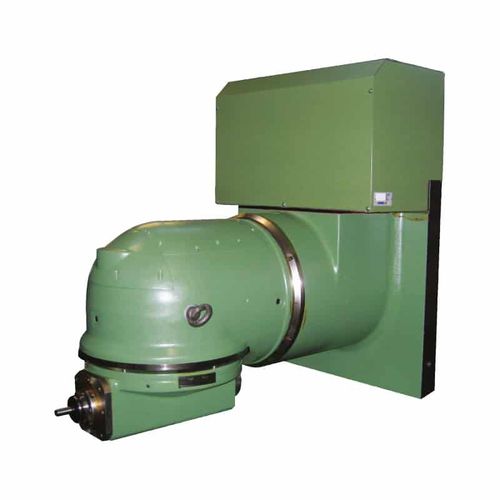

Machining unit angle head TX2 HT
Add to favorites
Compare this product
Characteristics
- Applications
- for machining units
- Power
37 kW
(50.31 hp)- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)- Torque
1,500 Nm
(1,106.34 ft.lb)
Description
Ortogonal type TX2 HT
Orthogonal head with 2 index axes. Axes rotation through machine spindle
Additional information
Tool taper [rif]
BT 50, ISO50
Plate locking force [N]
20000
Spindle nose - pivot point distance [mm]
250
Power [Kw]
37
Max. speed [rpm]
3000
Max torque on screw [Nm]
1500
Passo indexaggio corona Hirth Asse "A"
2,5°
“C” Axis indexing step with Hirth coupling
2,5°
Hirth coupling for Axes \"A\" and \"C\"
Z.144
Weight [Kg]
600
Catalogs
ISA catalog
18 Pages
