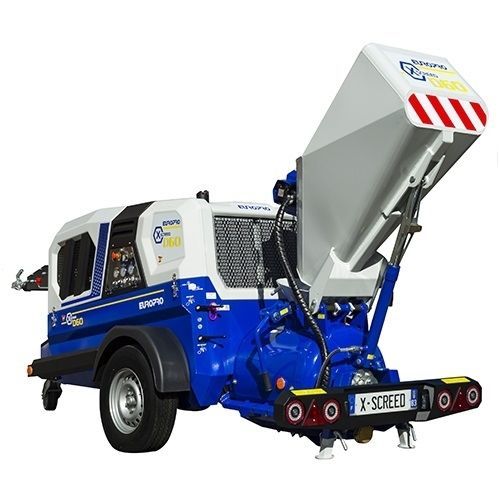

Floor-screed conveyor 40100

Machine designed for mixing and transporting screed. It is compact and easy to use with its button control panel and automatic accelerator. It operates with a self-lubricating hydraulic system. Its 2 folding covers and its tool box allow easy maintenance. It can be equipped in option with high-pressure cleaner, a 200 litre hopper and a hydraulically operated shovel to facilitate the operator's work. This equipment makes it the most complete machine on the market. Applications Ideal for all dry, semi-dry or wet screed applications, with products such as mortar, sand or light products such as clay. Technical characteristics Motor Kohler KDI 1903TCRE5 Motor power 42 kW Oil 10W40 Fuel Gasoil B7 Diesel tank 50 L Cooling liquid Speed of rotation 2600 rpm Number of cylinders 3 Consumption 9,9 L/h Compressor flow-rate > 5,5 m3/min Hydraulic system 50 L Engine monitoring panel complete Hydraulic controls electrical Pump speed setting manual Automatic accelerator control electrical/automatic Mixer tank capacity 200 L Mixer tank drain plug yes Standard filling height 90 cm Filling height with optional tank 40 cm Pump pressure 8,5 bar Maximum grain size up to 16 mm Mixer reverse speed yes Overall length with tow bar 5,23 m Overall width 1,58 m Height at the highest point 1,55 m Height at the highest point with optional tank 2,20 m Weight when full with oil and diesel 1960 kg OPTIONS Hoses Ø50 or Ø65 Hoses support tripod Ø50 or Ø65 Tank 200 L Hydraulically operated shovel wireless remote control HP washer pressure: 140 bar flow-rate: 11 L/min
