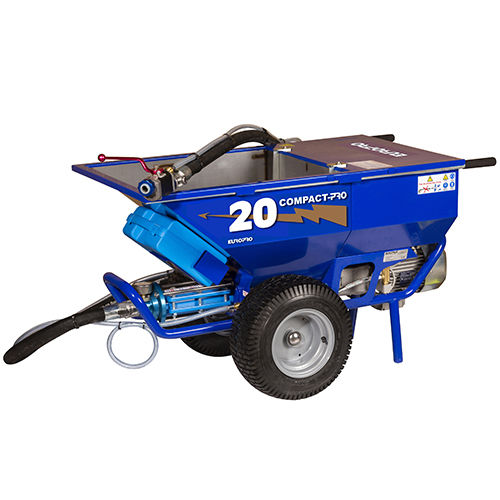

Spraying machine for mortars and exterior coatings.
Equipped with a stainless steel tank, a digital control panel and a mono-cylinder compressor.
Temporarily, the machine will be delivered with a button electrical box.
Applications
Traditional mortars with admixtures, hydraulic coatings, monolayers, lime-based coatings, high-load technical and special coatings, repointing coatings...
Technical characteristics
Product pressure
0 to 20 bar
Product flow-rate
0 to 20 kg/min
Machine motor power
1,5 kW
Compressor power
2,2 kW
Maximum air pressure
10 bar
Power supply
230 V - 16 A - 50 Hz
Tank capacity
100 L
Maximum grain size
3 mm
Pump
MAP 6
Integrated vibrator
no
Dimensions (L x w x h)
130 x 70 x 75 cm
Weight
135 kg
Noise level
94 Lwa
Delivered with
- a Ø32 mm x 10 m air/product hose
- a pressure controller with adapter
- a carry-case containing:
an ABS mortar spray lance
eight spraying nozzles (Ø8, 10, 12, 14, 16, 18, 20 & 22 mm)
three grouting nozzles (Ø10, 12 & 14 mm)
two cleaning balls and a tube brush
a cleaning brush
an unplugging brush
a 7 mm Allen key
