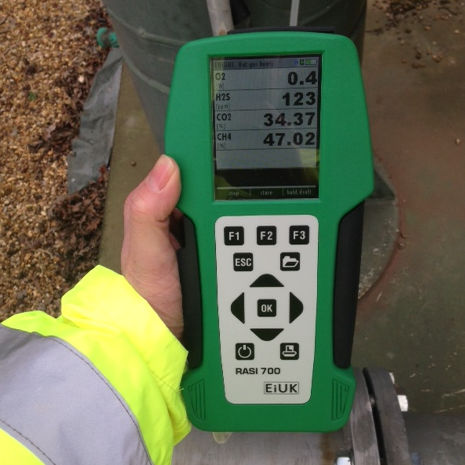

Biogas analyzer RASI 700 Bio

COCH4hydrogen sulfide

The Rasi 700 BIO Portable Biogas analyser for accurate gas measurements with-in Biogas applications - Measure O2, CO2,CH4 as standard - Provide stable reading with-in seconds - Optional H2S and CO measurement - Measure Bio Gas Pressure up to 300 mbar - Strong internal gas pump - Intuitive task oriented menu - Data logging, site management and data export to SD card Portable Biogas Analyser The RASI 700 BIO is a portable biogas analyser ideal for measuring gas in landfill, biogas, and water water treatment plants. The unit can be configured to measure 02, CO2%, CH4%, H2S and additionally H2 and CO to match the needs of the operators working in landfill applications. In addition, the analyser provides temperature and pressure readings ( differential, gauge and absolute) as standard, and optionally can measure gas flow by using our unique 3 ways straight pitot tube which enable the user to sample and display gas velocity, gas quality and temperature at the same time. The gas analyser is powered by high efficiency Li-ION rechargeable batteries which ensure a full day of operation with one single charge. Battery are charged trough standard USB port. The biogas readings are presented on its large 3.5″ TFT 6 lines colour display. Up to 4 instrument set up can be stored for recall and use. The RASI700 BIO is equipped as standard with an extensive data logging function and site administration facility with pre-load measurement points such as well ID’s . Up to 16000 data can be stored in the analyser internal memory and exported to SD card for future analysis on a PC. No specific software is required.
