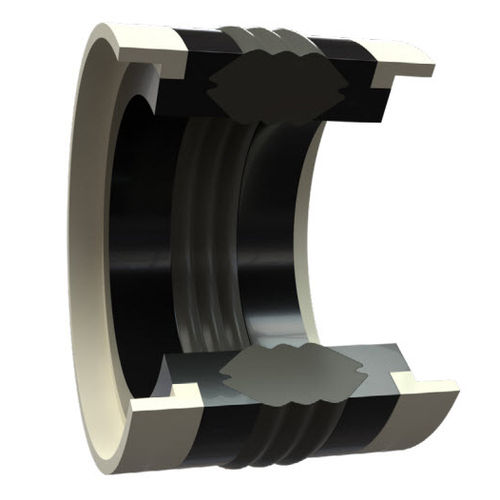

Piston seal PDE serieslippedwith circular cross sectionV-ring
Add to favorites
Compare this product
Characteristics
- Type
- lipped
- Configuration
- with circular cross section, V-ring, rectangular
- Material
- NBR, POM
- Application
- piston, for cylinders, for hydraulic applications, for hydraulic fluids, guide, for hydraulic cylinders
- Fluid
- oil
- Other characteristics
- hydraulic, pneumatic, dynamic, double-acting, high-pressure, custom-made, compact
- Temperature limit
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)- Pressure limit
700 bar
(10,152.6 psi)- Diameter
Max.: 335 mm
(13.189 in)Min.: 34 mm
(1.339 in)- Outer diameter
Max.: 360 mm
(14.173 in)Min.: 49 mm
(1.929 in)- Speed
0.5 m/s
(1.6 ft/s)
Description
Profile : PDE
Piston seals - Double acting - Open groove
Type : HYDRAULIC SEAL
Material : NBR + POM + PEE
Temperature range: -30°C/+100°C
Pressure : 70 MPa/700 bar
Speed : 0.5m/s
- Very robust sealing assembly for high pressure applications
- Particularly suitable for pressure shocks and uncontrolled forces
- Two-piece housing assembly
- Easy to mount
