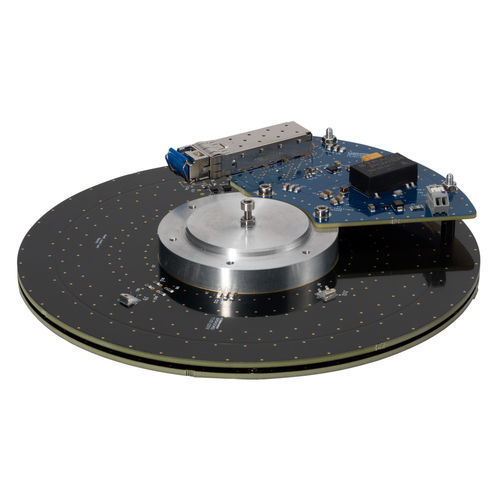

Contactless slip ring

Ethernethydraulic1 Gbps

This contactless slip ring delivers deterministic, real-time Ethernet data transmission above 1 Gb/s while providing continuous, maintenance-free operation for demanding industrial environments.
Key features

• Contactless capacitive technology for short-distance Ethernet data transfer with minimal signal loss and deterministic timing.
• Maintenance-free design eliminating mechanical friction, heat build-up and the need for lubrication or regular servicing.
• Pluggable, modular architecture allowing quick installation and easy integration into existing systems with adjustable bore sizes.
• Support for a wide range of industrial Ethernet protocols for flexible system compatibility.
• High rotation capability combined with advanced EMI shielding to ensure reliable performance in electrically noisy environments.

Applications

• Designed for industries requiring ultra-fast continuous data transmission and high reliability; validated in hydraulic turbine sensor applications.

Caractéristiques / spécifications techniques

• Data rate: above 1 Gb/s (1000BASE-TX)
• Technology: capacitive contactless electronics
• Supported protocols: Fast Ethernet, Profinet, Powerlink, EtherCAT
• Adjustable bore sizes: 0 mm to 250 mm
• Maximum rotation speed: up to 1,500 rpm
• Validated configuration: 130 mm bore unit tested in hydraulic turbine sensor applications
• EMI protection: advanced shielding for operation in high electromagnetic interference environments
