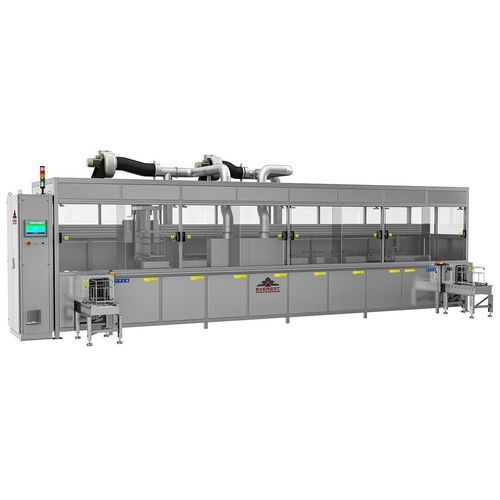

Basket materials handling system AHS series

automaticservo-drivenprocess

Overview
Automatic transfer of baskets between tanks using electrical or pneumatic chain hoist cranes and servo-driven axes. Suitable for large-volume tanks and processes with long cycle times and heavy loads.

General features

• High-efficiency transfer in multi-station washing systems, ensuring consistent handling and reducing labour.
• Fully automatic operation via servo motors and PLC control.
• Adjustable transfer speed, process times, temperature settings and basket draining from the main control panel.
• Operators prepare and receive baskets; transfers and process sequences run automatically to maintain consistent quality.
• Time-adjustable basket transitions between tanks.
• Password protection to prevent unauthorized program changes.
• Programming and real-time process monitoring from the HMI touchscreen.
• Robot communication on loading/unloading platforms using sensors for fully automatic integration.
• Central PLC control of machine and robot: process water temperature, ultrasonic time, drying and filtration times, etc.

Technical specifications

• Model: AHS-15 — Loading weight: 15 kg; Max horizontal speed: 27 m/min; Max vertical speed: 15 m/min; Tolerance: +/- 1 mm
• Model: AHS-40 — Loading weight: 40 kg; Max horizontal speed: 27 m/min; Max vertical speed: 15 m/min; Tolerance: +/- 1 mm
• Model: AHS-80 — Loading weight: 80 kg; Max horizontal speed: 27 m/min; Max vertical speed: 12 m/min; Tolerance: +/- 1 mm
• Model: AHS-200 — Loading weight: 200 kg; Max horizontal speed: 21 m/min; Max vertical speed: 9 m/min; Tolerance: +/- 1 mm

Components

• Control: PLC with HMI touchscreen
• Drive: Servo motors
• Basket transfer: Time-adjustable transitions between tanks
• Hoist: Electrical or pneumatic chain hoist crane
