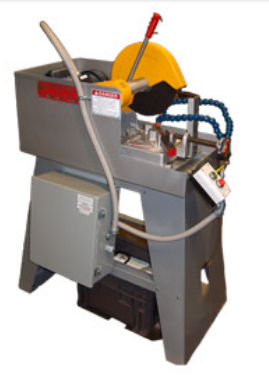

Circular saw

for steelautomaticwith cooling system

Complete with 3 HP TEFC motor, magnetic starter with 110 volt at the pushbuttons and swivel vise Mitering work back stop and vise jaw adjust to cut any miter up to 45°. Calibrated scale to locate proper position for vise rear fence. Vise jaw automatically adjusts. Capacity: 1" Solid • 2" Pipe • 45°—1.75" Most Shapes Coolant flow can be regulated and directed to both sides of the cut for optimum performance. Specifications Wheel Capacity: 10" wheel • Wet Non-Reinforced and Reinforced Wheels Motor: 3 HP Special Hi-Torque • Totally Enclosed Fan Cooled • 1 or 3 Phase Starter: Magnetic with thermal overload; 110 volt at the pushbuttons Spindle Bearings: Precision sealed ball bearings. Lubricated for life. Arbor Shaft: 5/8" arbor Drive: Dual (Raw edge sure grip “V” belts with steel sheaves) Safety Guards: Cutoff wheel and guards exceed safety code requirements. Improved spark arrestors to deflect sparks. Stop: Adjustable down stop limits depth of chop stroke. Shipping Weight: Machines: 200-275 lbs.
