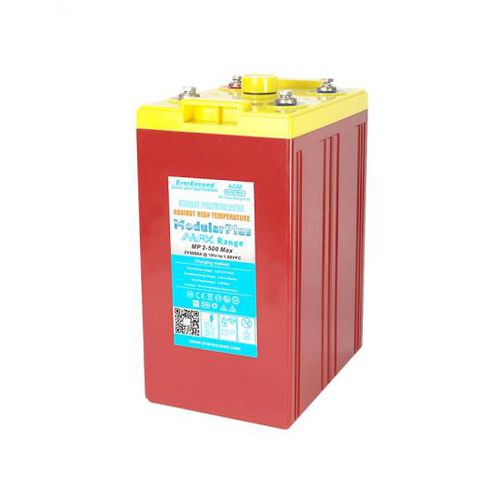

VRLA battery MP 2 Max series
modularfor UPSindustrial

VRLA battery - MP 2 Max series - EverExceed Industrial Co. Ltd - modular / for UPS / industrial
VRLA battery - MP 2 Max series - EverExceed Industrial Co. Ltd - modular / for UPS / industrial
VRLA battery - MP 2 Max series - EverExceed Industrial Co. Ltd - modular / for UPS / industrial - image - 2
VRLA battery - MP 2 Max series - EverExceed Industrial Co. Ltd - modular / for UPS / industrial - image - 3
VRLA battery - MP 2 Max series - EverExceed Industrial Co. Ltd - modular / for UPS / industrial - image - 4
Add to favorites
Compare this product

Characteristics

Type
VRLA
Configuration
modular
Applications
for UPS, industrial, high-temperature, solar
Connection type
M8
Standard
UL, CE, IEC, ISO
Other characteristics
high-performance, deep cycle, maintenance-free, stationary, high-reliability, stand-by, heat-resistant, extended temperature range
Load capacity

Max.: 3,000 Ah

Min.: 200 Ah

Length / diameter

Max.: 710 mm
(28 in)

Min.: 171 mm
(6.7 in)

Width

330 mm, 345 mm
(12.99 in, 13.58 in)

Height

330 mm, 345 mm, 365 mm, 383 mm
(13 in, 14 in, 14 in, 15 in)

Max.: 710 mm
(28 in)

Min.: 166 mm
(7 in)

Weight

Max.: 189 kg
(416.67 lb)

Min.: 13.5 kg
(29.76 lb)

Description

EverExceed Modular Plus MAX batteries are special designed for application that have high-temperature environment above 35°C. Modular Plus MAX batteries use five advanced key technologies to ensure it excellent performance in high temperature: Advanced Corrosion-resistant battery plate alloy technology; Anti-high temperature casing materials technology; Special lead paste formula and plate formation technology; Innovative features: -Long life: The Modular Max range batteries have a long life of 20 years. -High quality raw material: High ratio of Tin is used in the grid alloy along with 99.994% pure Lead and calcium to minimizing plate grid corrosion, promotes long battery life and imported Nano carbon used in grid alloy maximize cycle performance and PSoC operation. -Valve Regulated (Sealed) Construction These valve regulated AGM (Absorbed Glass Mat) rechargeable lead acid batteries are for safe, maintenance free operation in Vertical or Horizontal position. -Gas Recombination System The gasses generated in the normal charge / discharge use of the battery are recombined during normal operation. In normal operation, more than 99% of the gases generated are efficiently recombined. -Maintenance Free The Battery has been designed and built such that no addition of electrolyte is needed for the life of the battery. Applications: -Uninterruptible Power Supply (UPS) -Switchgear -Emergency lighting -Standby Power supply -Telecom -Navigation Aids -Photovoltaic/ Solar Certificates: UL1989 / IEC 60896-2 / IEC61427 / IEC60254/ CE Latest projects: 2021 Ukraine-Power station 2020 Malaysia-Malaysia University backup power project
