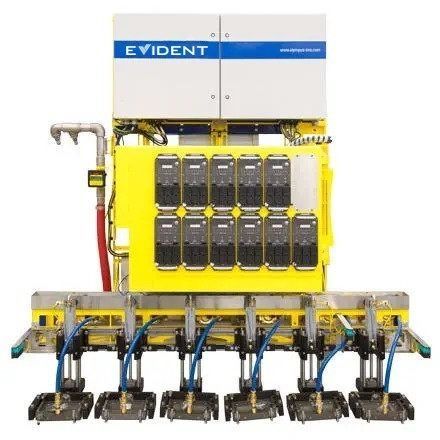

Ultrasonic inspection system RTIS

automatedfor seamless tubesfor welded pipes

The rotating tube inspection system (RTIS) is a turnkey solution that uses phased array probes integrated into a fully automated testing system to meet stringent requirements for volume and surface inspections. Key benefits include: • Minimize your dependency on operator skill with automatic calibration • Detect defects at production speed with calibration check • Familiar to major oil companies • Detects oblique defects to meet current and pending industry standards • Get the most out of the system with 2D mapping and end-of-tube inspection capabilities Designed to be an easy-to-use solution for helping ensure the quality of seamless and electric resistance welded tubes, the system includes: • Dedicated project management • Instruments, probes, and mechanical equipment • Water management system • Software • Commissioning, training, and after-sales support • Dedicated project management • Instruments, probes, and mechanical equipment • Water management system • Software • Commissioning, training, and after-sales support Inspect for longitudinal, transverse, oblique, and lamination defects, and measure wall thickness. • Novel water wedge enables many degrees of freedom to accommodate pipe movement and provide excellent coupling • Design leaves only small untested tube ends • Automatic calibration for repeatable results • High sensitivity on small reference defects with a signal-to-noise ratio greater than 12 dB • Can be used to fulfill testing regulations (API-5CT and API-5L)
