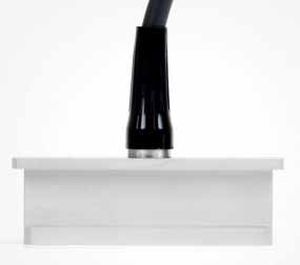

Ultrasonic probe 5L64-I1

stainless steelcorrosion-resistant

Immersion probes are designed to be used with a water wedge or in an immersion tank when the test part is partially or wholly immersed. They are longitudinal wave probes that can be set up for refracted shear-wave inspections using a Rexolite wedge. Advantages • Acoustic impedance matches water • Design allows fitting on water wedges for easier coupling on many surfaces and an adjustable water path (when the part to be inspected cannot be immersed in a tank). • Linear scanning allows coverage of 30 mm to 90 mm in one line, with very high accuracy. • Corrosion-resistant stainless steel case • Waterproof guaranteed up to 1 m (3.28 ft) under water Typical Applications • Inspection of thin plate or tubing (steel, aluminum, or other) • Composite inspection for delamination, disbonding, etc. • Inline thickness gaging • Automated scanning
