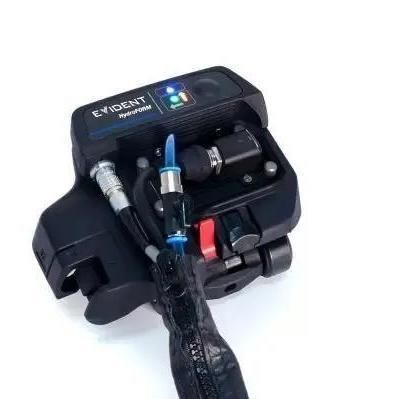

XY scanner HydroFORM

for NDTfor corrosion inspectionfor corrosion mapping

By bringing a semiautomated phased array solution into the corrosion inspection market, Evident has not only introduced a new technology, but also a new world of possibilities. Say goodbye to unsafe and unreliable motorized rastering of small UT probes; phased array probes cover a larger surface, and can be manually traveled at a safe speed. This solution enables inspectors to be more productive and collect higher resolution data. The HydroFORM and RexoFORM are designed to offer the best inspection solution for the detection of wall-thickness reductions due to corrosion, abrasion, and erosion. Our solution also detects mid-wall damage such as hydrogen-induced blistering or manufacturing-induced laminations, and easily differentiate these anomalies from loss of wall thickness. The unique quick adjustment device offered by both scanners allows the wedge/probe assembly to be positioned to any curvature greater than 4 in. OD (101 mm). HydroFORM High-performance corrosion mapping for rough and uneven surfaces • Easy gate synchronization with the front wall for OD and ID corrosion monitoring. • Wedge reflection is eliminated. • Coupling is optimized. • Provides excellent near-surface resolution. HydroFORM utilizes an ingenious water-column concept that eliminates the need for a wedge, thus providing the benefits of a phased array immersion-tank inspection. This concept, which uses a low-flow water supply and consumable gaskets, offers excellent surface conformance and optimized coupling conditions, even on rough surfaces.
