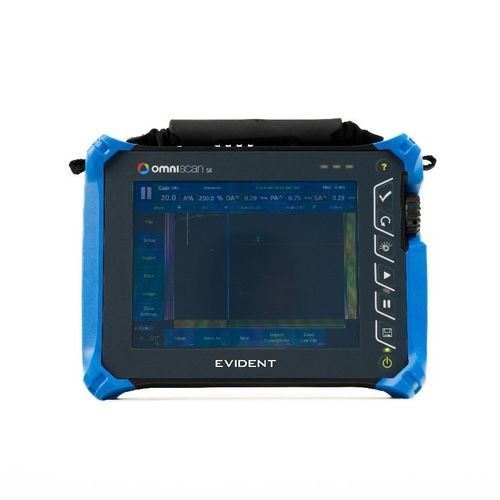

Phased array ultrasonic flaw detector OmniScan™ SX

for NDTportabledigital

The OmniScan SX is a lightweight single-group ultrasonic phased array flaw detector designed for cost-effective, portable phased-array and conventional UT inspections.

Overview
The instrument combines a compact, portable design with an easy-to-read 8.4-inch (21.3 cm) touchscreen to support field and on-site inspections.

Key features

• Single-group phased array architecture for focused PA inspections
• Lightweight design optimized for portability
• 8.4-inch (21.3 cm) touchscreen for intuitive operation
• Cost-effective solution for phased array and basic UT applications
• Available in two models referenced below

Variants

• SX PA: phased array model with 16:64PR configuration
• SX UT: conventional UT model
• Conventional UT channel (available on both models) supports TOFD, pulse-echo and separate transmit/receive modes

Technical specifications

• Commercial name: OmniScan SX
• Product line: IMS
• SKU: omniscan-sx
• Internal product id: 129264
• Display: 8.4-inch (21.3 cm) touchscreen
• PA configuration (SX PA): 16:64PR
