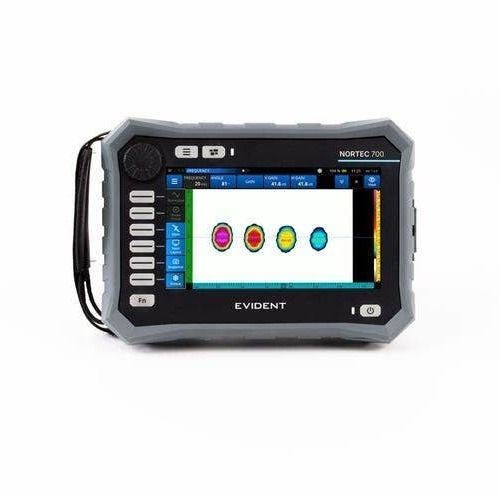

Imaging flaw detector NORTEC™700

eddy currentfor NDTportable

Overview
The NORTEC 700 is an integrated eddy current flaw detector combining conventional ECT and advanced ECA capabilities in one instrument. Designed for demanding inspection tasks in aerospace, defense and industrial NDT, it supports bolt-hole inspection, dual-frequency testing and array imaging while simplifying setup and on-site operation.

Models

• N700: Conventional eddy current testing (ECT) for single-frequency surface and near-surface inspections.
• N700D: Adds dual-frequency operation and enhanced bolt-hole inspection features to the N700 baseline.
• N700i: Integrates ECT and advanced eddy current array (ECA) imaging with automatic layer detection and defect-viewer functions.

Key features

• Single-platform ECT and ECA with application-based intelligent presets for repeatable setups.
• Hybrid hard-key and touchscreen control for fast field operation.
• Next-generation eddy current array probe support (up to 256 channels) and array capacity to 128 time slots.
• Bolt-hole inspection tools including Freeze Mode, automatic layer detection and Defect Viewer (N700i).
• High sample rate and flexible filter options to support scanner and manual inspections.
• Rugged design with IP65 rating and MIL-class mechanical test compliance for field reliability.

Next-generation probes
Support for new eddy current array probes delivers improved repeatability, uniform signal quality across probes and simplified calibration workflows. Array-capable models handle extensive channel counts for detailed imaging.

Bolt-hole inspection & layer detection
Automatic layer identification and Freeze Mode reduce false calls during bolt-hole and multi-layer inspections. The Defect Viewer overlays scanner images for precise localization of fastener-related indications.

Connectors & probe support
Standard interfaces include a 16-pin LEMO® universal connector (POWERLINK™ compatible), BNC ECT connector with automatic internal balancing, an ECA connector and I/O for system integration. Automatic probe recognition and instrument presets speed deployments in the field.

Display & layout options
A high-brightness 7-inch display with enhanced color mapping supports multiple user-selectable layouts: single/dual impedance plane, sweep (strip chart), 1:1 view, C-scan, C-scan waterfall, split screen and all-in-one view with up to three configurable traces.

Seamless integration & reliability
The NORTEC 700 integrates with inspection systems and supports remote control via PC software, USB-C peripheral ports and optional Wi‑Fi/Bluetooth. Notable attributes: IP65 rating, -10 °C to 50 °C operating range, 64 GB internal storage, up to 30 kHz sample rate, 32-bit data resolution and three independent alarm types.

Applications

• Aerospace: surface, wheel and bolt-hole inspections for MRO and OEM workflows.
• Defense: field-capable fastener and structural inspections.
• Industrial NDT: welds, heat-exchanger/tube inspection, surface and corrosion surveys.

Technical specifications

• Housing dimensions: 230.7 mm × 166.9 mm × 71.9 mm
• Weight: 1.79 kg (with lithium-ion battery)
• IP rating: IP65
• Battery: 600-BAT-L-2 (Li-ion), runtime ≥ 8 hours (standard ECT)
• Operating temperature: -10 °C to 50 °C (80% RH)
• Display: 7-inch TFT LCD (154.2 mm × 85.9 mm, diagonal 177.8 mm)
• Power: 24 VDC (60 W)
• Internal storage: 64 GB
• Frequency range: 5 Hz to 12.5 MHz
• Gain: 0–100 dB (1 dB steps)
• Array capacity: up to 128 time slots; probe support up to 256 channels
• Sample rate: up to 30 kHz; data resolution: 32 bits
• Connectivity: USB-C (peripheral), optional Wi‑Fi/Bluetooth, 19-pin LEMO I/O
• Environmental & mechanical: drop, shock and vibration tests per MIL methods
