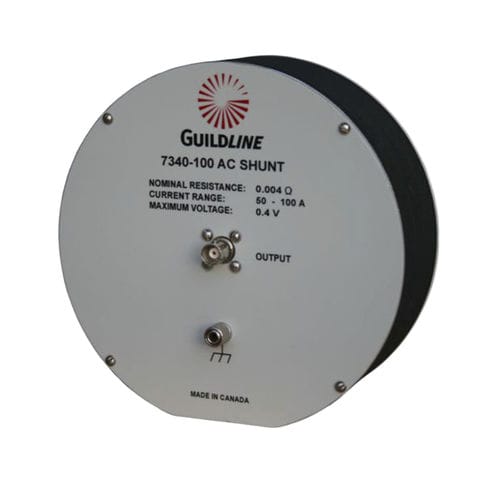

Precision shunt 7340 series

GUILDLINE INSTRUMENTS provides two series of the best performing, most compact, wide-band AC current shunts that are commercially available from any manufacturertoday! Each AC Shunt Series provides unique design features that allow customers to select the AC Shunt most appropriate for their measurement application. PROVIDING TWO SERIES FOR AC CURRENT SHUNTS, THE 7350 POWER BASED SERIES AND THE 7340 VOLTAGE BASED SERIES. BOTH SERIES PROVIDE FOR PRECISION AC CURRENT MEASUREMENTS TO 100 A AND A WIDE 100 KHZ FREQUENCY BANDWIDTH! Guildline Instruments provides the best performing, most compact, high frequency AC/DC current shunts that are commercially available. The 7340 Series provides a range of output voltages designed for use with thermal converters, while the 7350 Series is designed to be used across a much wider operation range based on output power (watts). Both Series are unique with respect to engineering and design, compact size and EMI shielding. The 7340 and 7350 Series of four-terminal AC Current Shunts feature low uncertainty (high accuracy), low temperature coefficients and excellent stability. These new shunts are designed to be purely resistive with extremely small values of reactance. These shunts may be used over a wide frequency range from DC to 100 kHz. The 7340 Series, with 10 available Current models, is designed to provide an output voltage in the range of 0.2 to 1.0 Volt for specified current models from 10 mA to 100 A. For the higher current ranges above 3 A the model 73401 Forced Convection Unit is used to provide air cooling. A buffer amplifier is also provided for use with low currents.
