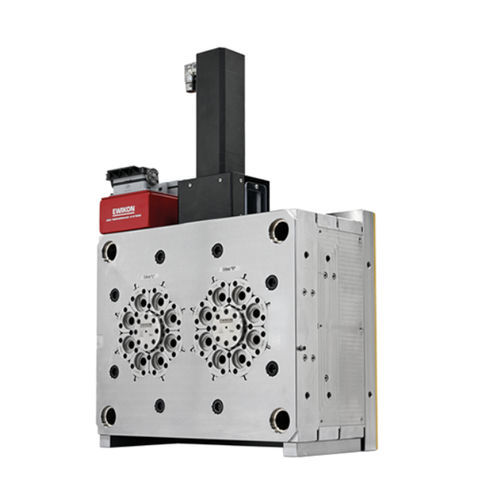

Valve gate system EDGE VG

Product overview
The pro EDGE VG side valve gate system sets new standards for direct side gating. It combines precise gate quality and extended gating options with a maintenance concept that allows easy replacement of wear parts as a single assembly. The convenience known from open side-gating versions has been retained in the valve gate solution.

Your advantages when using pro EDGE VG

• Ease of maintenance: wear parts (valve pin, valve pin guide, valve pin seal) are replaceable as a single assembly.
• Process reliability with precise gate quality: direct side gating combined with valve gate control; suitable for standard materials (polyolefins) and soft materials (TPE).
• Extended gating options: gating possible on very small side surfaces.
• Compact mould design and simplified mould assembly: space-saving drive enables low mould height; mould inserts do not need to be split for nozzle installation, improving mould stability and cooling.

Valve pin actuation
High-precision, fully synchronous actuation of the valve pins is provided by a latest-generation linear servomotor with motion CONTROL SD control technology. Valve pin stroke and opening speed are infinitely variable and can be adjusted to process requirements.

Extended gating options
pro EDGE VG enables gating on geometries where side gating was previously impractical due to insufficient shear surface. Generally, an area corresponding to the valve pin gate diameter is sufficient.

More information
Product flyer (PDF) and a technology video are available for further technical details and demonstrations.

Characteristics / technical specifications

• Brand: EWIKON
• Model / Denomination: pro EDGE VG
• Technology: side valve gate system for direct side gating
• Valve pin actuation: linear servomotor with motion CONTROL SD control technology; synchronous actuation
• Valve pin control: infinitely variable stroke and opening speed; customizable to process requirements
• Maintenance: wear parts (valve pin, guide, seal) replaceable as a single assembly
• Materials suitable: standard materials (polyolefins) and soft materials (TPE)
• Gating capability: extended options allowing gating on very small side surfaces; area ~ gate diameter sufficient
• Mould design: compact, low mould height; no need to split mould inserts for nozzle installation; simplified cooling
• Available media: product flyer (PDF) and product/technology video
