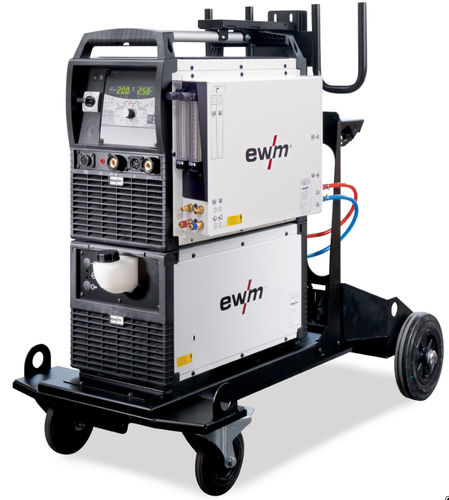

Arc welding machine Microplasma 105-2 PG

TIGplasmamanual

The price shown includes the following components: Microplasma welding machine with precision gas metering unit Cool 55 MPW55, “blueCool” coolant to -10 °C (-14 °F), 5 l, 5 l Transport cart (four wheels) for moving a power source, cooling unit or a tool box and two shielding gas cylinders, Two shielding gas cylinders Workpiece lead with clamp, 170 A / 60 %, 16 mm² Gas hose, 2 m Gas hose, Pressure regulator "Maxex", : Cylinder pressure regulator, : Water-cooled plasma welding torch, Electrode setting gauge, suitable for PHW 100/150 and PWM 100/150 Threaded adapter for connecting 1/4" left-hand thread gas hoses to welding machines with 1/4" right-hand connecting nipples, Hysteresis-free precision gas metering unit for plasma gas and shielding gas with 15-start control valves to precisely set the gas flow rate. Recommended for precision welding even in the lower current range Plasma gas setting range 0.1 l/min to 1.1 l/min (tolerance +/- 2% from end value) Shielding gas setting range 3.5 l/min to 20 l/min (tolerance +/- 2% from end value) Microplasma welding machine with precision gas metering unit Welding procedures and functions Plasma and TIG welding Plasma and pulsed TIG welding Plasma and pulsed TIG welding up to the kHz range allow a high welding speed with minimal heat input using a constricted arc Plasma and TIG welding current adjustable in 0.1 A increments Pilot arc current separately adjustable for start phase, welding phase, end-crater and welding break Temperature, flow and pressure monitoring for the coolant circuit Non-latched/latched operation Spot welding/tack function (spotArc/spotmatic)
