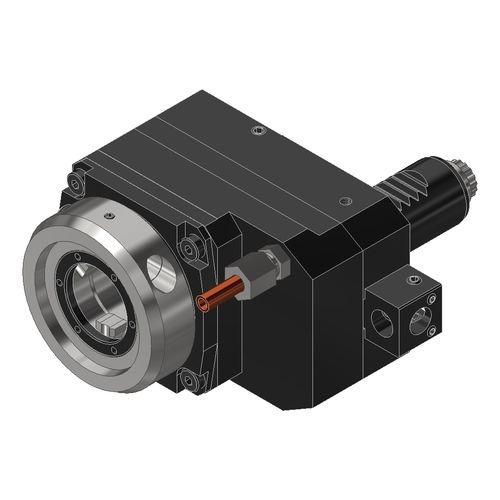

Straight tool holder 50.25VX35480RLIKI1 - Ax

VDIDIN 69880Weldon

With the patented quick-change system EWS.Varia VX, you perform the tool change faster than your competitors. In addition, your driven tool adapts to your requirements in the future. Due to the modular interface, for each machining process, the ideal tool clamping can be selected. • Tool change in less than 20 seconds • One-hand operation • Mechanically loaded tool ejection • Transverse force-free clamping of inserts • Safe torque transmission • Large selection of adapters (collet, Weldon, milling arbor, hydraulic expansion, shrinking) • Tightening torque of 6 Nm must be observed! • VDI shank double toothed. • Tool holder can be rotated 180°. • Note: Rotatability may be restricted by alignment systems (e.g. Trifix). Internal cooling Equipped with high-quality seal kits that can withstand coolant pressure of up to 70 bar. • 70 bar maximum coolant pressure • Not capable of dry running • Change between external and internal cooling possible • Coolant must be applied to the tool at all times
