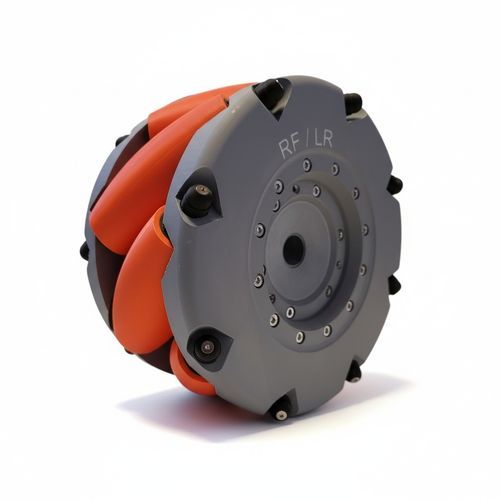

Mecanum wheel aluminiumsmoothball bearing
Add to favorites
Compare this product
Characteristics
- Type
- mecanum
- Hub material
- aluminium
- Hub type
- smooth, ball bearing
- Tread material
- rubber, polyurethane
- Hardness
- 90 shore A
- Applications
- wheel, for heavy loads, for automobiles, rotary table, handling, for trolleys, for medium loads, for machines, for containers, for forklift trucks, ground, military
- Other characteristics
- elastic, low-noise, solid, high-performance, omnidirectional
- Load capacity
200 kg, 250 kg, 300 kg, 400 kg, 500 kg
(441 lb, 551 lb, 661 lb, 882 lb, 1,102 lb)Max.: 3,000 kg
(6,614 lb)Min.: 50 kg
(110 lb)- Diameter
150 mm
(5.91 in)Max.: 700 mm
(27.56 in)Min.: 100 mm
(3.94 in)- Hub length
200 mm
(7.87 in)Max.: 200 mm
(7.87 in)Min.: 20 mm
(0.79 in)- Tread width
250 mm
(9.84 in)Max.: 100 mm
(3.94 in)Min.: 1 mm
(0.04 in)- Bore diameter
300 mm
(11.81 in)Max.: 200 mm
(7.87 in)Min.: 5 mm
(0.2 in)
Description
Mecanum wheels consist of rollers with a special geometry and placed in a special way at 45 degree angles that enable the vehicle to move forward-backward, diagonally-laterally, turning in place and going in all directions. Mechanum wheels theoretically increase the degree of freedom of the vehicle it is used in. It was invented in 1970 by Bengt ILON, one of the Swedish company Mecanum AB engineers. Later, the United States military bought this patent and worked on development in Panama. These wheels were used in the army to move supplies and move ships.
VIDEO
Catalogs
MECANUM WHEEL TABLE
1 Pages
