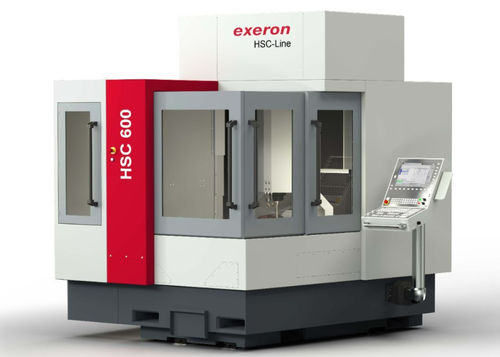

3-axis CNC milling machine HSC 600/3universalHSK-E40HSK-E50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- universal
- Spindle mount
- HSK-E40, HSK-E50
- Number of tool stations
- 60 tools, 30 tools, 27 tools, 90 tools
- Applications
- for the mold industry
- Other characteristics
- high-speed, high-power, with tool changer
- X travel
585 mm
(23.03 in)- Y travel
550 mm
(21.65 in)- Z travel
400 mm
(15.75 in)- Rotational speed
36,000 rpm, 42,000 rpm
(226,195 rad.min-1, 263,894 rad.min-1)- Power
10 kW, 13.5 kW, 24.8 kW, 33 kW
(13.6 hp, 18.35 hp, 33.72 hp, 44.87 hp)- Work feed X-axis
50 m/min
- Work feed Y-axis
50 m/min
- Work feed Z-axis
50 m/min
- Table load capacity
600 kg
(1,323 lb)- Overall length
2,200 mm
(86.6 in)- Overall width
2,400 mm
(94.5 in)- Overall height
2,900 mm
(114.2 in)
