Immersion fitting EXdip 910

Product description

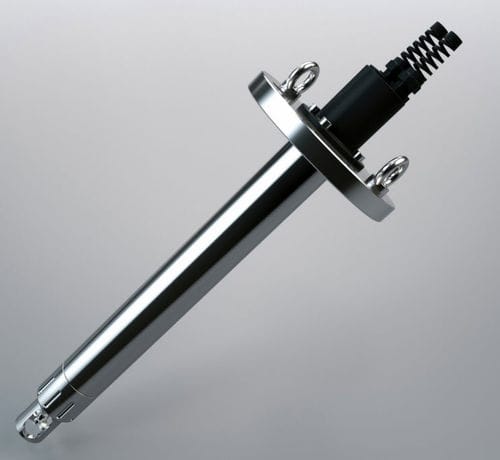

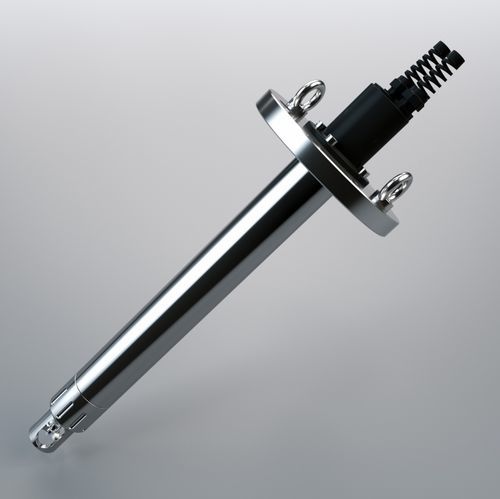

EXdip 910 is an immersion fitting in AISI 316L stainless steel with flanged process connection and an integrated orbital sensor cleaning system. The probe housing is fastened by flange. The sensor is secured inside a protective cage and positioned within the orbital cleaning zone for mechanical cleaning. Multiple immersion lengths are available to suit tank and vessel installations.

Your advantages

• Integrated orbital spray cleaning at the sensor location
• Extends sensor lifetime and reduces maintenance requirements
• Easy installation and removal of the sensor holder
• Wetted material: Stainless steel AISI 316L / 1.4404
• Immersion lengths from 0.5 to 2.5 m
• Minimum size DN50 / 2"
• Rated for up to 10 bar and 140 °C
• No external cleaning devices required

Configuration options

• Material (wetted parts): Stainless steel 1.4404 / 316L
• Sealing material (wetted seals): EPDM (FDA/USP VI) or FPM (Viton)
• Sensor type: 120 mm PG13.5 Ø12 mm; options for sensors with MNPT 3/4" or MNPT 1" (specific variants)
• Process connection: Flange DN50 PN16 or Flange ANSI 2" 150 lbs
• Immersion lengths: 0.5 m, 1.0 m, 1.5 m, 2.0 m, 2.5 m
• Cleaning: without (NC) or with integrated spray/orbital cleaning (SC)

Applications

• Compatible with Ø12 / 120 mm sensors with thread PG13.5 (pH glass and ISFET sensors, conductivity and temperature sensors, turbidity and other optical sensors)
• Chemicals
• Water and wastewater
• Permanent installation in tanks, vessels or open channels

Technical characteristics

• Process pressure: 0–10 bar
• Process temperature: -10–140 °C
• Wetted material: Stainless steel 1.4404 / AISI 316L
• Sealing: EPDM (FDA/USP VI) or FPM (Viton)
• Immersion length: 0.5 m to 2.5 m
• Flange: DN50 (PN16) or ANSI 2" (150 lbs)
• Sensor holder for Ø12 / 120 mm sensors (PG13.5)
• Optional integrated orbital spray cleaning
