sand 3D printer / industrial / for mold manufacturing / large-format
Exerial™

{{requestButtons}}

Characteristics

  • Materials to be printed:

    sand

  • Applications:

    industrial, for mold manufacturing

  • Other characteristics:

    large-format

  • X travel:

    2,200 mm

  • Y travel:

    1,200 mm

  • Z travel:

    600 mm

Description

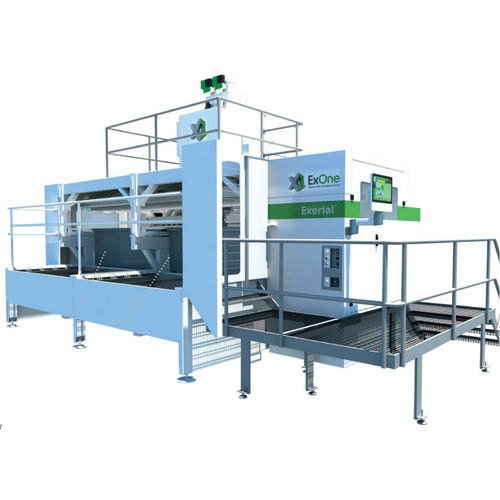

ExerialTM Industrial Production 3D Printer
The Flagship for Industrial Series Production

Industrial series production of complex sand cores and molds is now possible using the Exerial™ 3D printer with two job boxes and a printing volume of 130.5 ft3 (3,696 L). Multiple Exerial™ printers can be linked together, forming a networked assembly system. This high degree of automation makes the Exerial™ printer ideal for mass production.

The ExOne® 3D printing process enables production of sand molds and cores direct from CAD files, without need for tooling or pattern storage. Use of specially-formulated industry materials such as silica and synthetic molding sand and binders, allows foundries to combine complex printed cores with their own conventional sand molds.
