Radio control EXREM10
with buttonsjoystickwith toggle switch

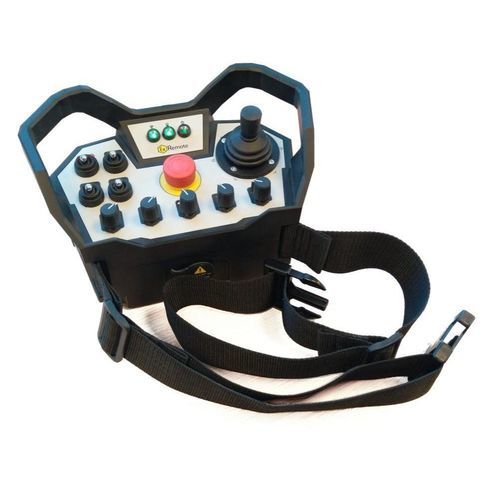

Radio control - EXREM10 - ExRemote BV - with buttons / joystick / with toggle switch
Radio control - EXREM10 - ExRemote BV - with buttons / joystick / with toggle switch
Radio control - EXREM10 - ExRemote BV - with buttons / joystick / with toggle switch - image - 2
Radio control - EXREM10 - ExRemote BV - with buttons / joystick / with toggle switch - image - 3
Add to favorites
Compare this product
Go to the ExRemote BV website for more information

Characteristics

Type
radio
Control interface
with buttons, with configurable buttons, joystick, with toggle switch, rotary switch
Product applications
for hydraulic cranes, for vehicles, industrial, for mining equipment, for UAVs, for the petrochemical industry, for hoists, for marine applications, for hydraulic pumps, industrial, for machinery, for material handling equipment, for cranes, for overhead cranes, for lifting equipment, winch, for hoists, for remote control, for equipment lifting, for drilling, for excavators, for handheld control boxes, for utility vehicles, for drilling rigs, for control panels, for crawlers, for robots, for marine applications, for trucks, for machines, for hazardous areas, heavy equipment, transmitter, for agricultural applications, for industrial applications, for automation, OEM, for materials handlers, for heavy-duty applications, for AGVs, for vessels, for the manufacturing industry, for electric actuators, for hydraulic applications, for mixers, for instrumentation, for excavators, for pump
Number of buttons
10-button, 6-button, 8-button, 4-button, 14-button, 21-button, 2-button, 12-button, 3-button, 5-button, 18-button, 16-button, 24-button, 7-button, 15-button, single-button, 9-button
Features
with emergency stop, on/off
Protection level
IP65, rugged, ATEX
Battery type
rechargeable, lithium-ion
Other characteristics
rugged, with feedback, with integrated display, bidirectional, waist, custom-made, Modbus, PROFIBUS
Certifications
CE certified
Reach

Max.: 220 m
(721'09" )

Min.: 0 m
(0'00" )

Weight

2.3 kg
(5.071 lb)

Temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Frequency

Max.: 925 MHz

Min.: 868 MHz

Power source

1 A

Charging time

3 h

Continuous working time

55 h

Description

Overview
The EXREM10 Series is a second-generation rugged industrial remote control platform certified for operation in ATEX Zone 2 hazardous environments. Originally developed to operate crawlers for cleaning and coating oil storage tank walls, EXREM10 has been redesigned to improve durability, system integration and field maintainability for demanding industrial applications.

Design and electronics
The sealed housing is manufactured from materials selected to balance tensile strength and flexibility, providing high impact resistance and long-term mechanical integrity in harsh conditions. The electronics platform supports expanded communication options, including optional wired Modbus via RS-485 and Profibus, enabling integration with existing PLC and control architectures.

Control and user interface
Each controller can be configured to your application. Ergonomic control layouts reduce operator error and improve safety. Integrated operator feedback — via multi-colour LEDs or a sunlight-readable display — keeps personnel informed during operation. Custom graphics and button layouts can be aligned with site or brand requirements.

Key specifications
Weight: Approx. 2.3 kg (5.1 lbs) depending on controls.
Operating temperature: -20 °C to 60 °C (-4 °F to 140 °F).
Protection: Water- and dust-tight (IP65+). Impact resistance: IK7+.
Battery: Built-in, approx. 55 hours operating time.
Frequency bands: 868 / 915 / 925 MHz configurable for worldwide coverage.
Range: Up to 220 m (700 ft) line of sight.
Certification: CE EX II 3G Ex nA IIB T6 Gc II 3D Ex tc IIIC T85 Dc.

Technical specifications
  • Series: EXREM10 Series
  • Application: Rugged industrial remote control for hazardous environments (ATEX Zone 2)
  • Typical use cases: Tank-cleaning and coating crawlers, climbing crawler robots, heavy-duty hoisting systems
  • Housing: Materials optimised for tensile strength and flexibility; high impact resistance
  • Connectivity: Radio (868/915/925 MHz); optional wired Modbus via RS-485; Profibus
  • User feedback: Multi-colour LEDs or sunlight-readable display; configurable/custom graphics
  • Weight: Approx. 2.3 kg (5.1 lbs) depending on controls
  • Operating temperature range: -20 °C to 60 °C (-4 °F to 140 °F)
  • Ingress protection: IP65+
  • Impact resistance: IK7+
  • Battery life: Built-in battery, approx. 55 hours operation
  • Radio range: Up to 220 m (700 ft) line of sight
  • Certification: CE marking with EX approvals for specified hazardous zones
