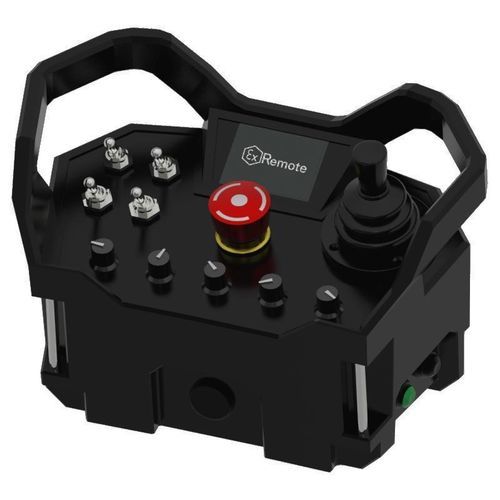

Radio control EXITX000with buttonsjoystickwith toggle switch
Add to favorites
Compare this product
Characteristics
- Type
- radio
- Control interface
- with buttons, with configurable buttons, joystick, with toggle switch, rotary switch
- Product applications
- mobile, industrial, for heavy machinery, for marine applications, for pipe inspection cameras, for boreholes, for mining equipment, for heavy-duty applications, industrial, dust, for excavators, for robots, for drilling rigs, for control panels, for industrial applications, for the petrochemical industry, for marine applications, for cleaning, heavy equipment, for hazardous areas
- Number of buttons
- 2-button, 6-button, 15-button, 8-button, 4-button, 10-button, 12-button, 16-button, 3-button, 5-button, single-button, 24-button, 14-button, 21-button, 18-button, 7-button, 9-button
- Features
- with emergency stop, on/off
- Protection level
- IP65, rugged, ATEX, intrinsically safe
- Battery type
- rechargeable, lithium
- Other characteristics
- bidirectional, safety, rugged, with feedback, Modbus, with integrated display, with LCD display, waist, custom-made, SIL3, multi-function, PLe CAT3
- Certifications
- CE certified
- Reach
Max.: 220 m
(721'09" )Min.: 0 m
(0'00" )- Weight
2.5 kg
(5.512 lb)- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)- Frequency
Max.: 925 Hz
925 Hz, 868,000,000 Hz
Min.: 868 Hz
- Power source
1 A
- Charging time
3 h
- Continuous working time
33 h
Description
Product overview
The EXITX000 Series is a third-generation intrinsically safe industrial remote control certified for operation in ATEX/IECEx hazardous areas Zones 0, 20, 1 and 21. Designed as the successor to the EXREM10 Series, it meets intrinsic safety requirements for continuous use where explosive gas or dust atmospheres may be present.
Intrinsic safety and design
Intrinsic safety is implemented across both electronics and mechanical design. Circuit energy is strictly limited to prevent ignition under normal and fault conditions. Enclosure and label materials are selected and tested to eliminate potential ignition sources such as ESD, low-energy sparks and excessive surface temperatures, in accordance with common temperature classes (T4).
Configuration and operator feedback
Each controller is configurable to match application requirements. Ergonomic control layouts reduce operator error while improving safety. Integrated feedback is provided via multi-color LEDs or a sunlight-readable display; custom graphics can be applied to align with site or brand requirements.
Key specifications
Weight: Approx 2.5 kg [5.5 lbs], depending on controls.
Operating temperature: -20 °C [-4 °F] to 60 °C [140 °F]
Protection: Water and dust tight (IP65+) High impact strength (IK7+)
Battery: Built-in, approx. 33 hours operating.
Frequency bands: 868 / 915 / 925 MHz configuration for world wide coverage.
Range: Up to 150 meter [500 feet] line of sight.
Certification (pending): CE Ex II 1D Ex ia IIC T4 Ga II 2D Ex ia IIIB T135°C Db Ta -20~60°C
Technical specifications
The EXITX000 Series is a third-generation intrinsically safe industrial remote control certified for operation in ATEX/IECEx hazardous areas Zones 0, 20, 1 and 21. Designed as the successor to the EXREM10 Series, it meets intrinsic safety requirements for continuous use where explosive gas or dust atmospheres may be present.
Intrinsic safety and design
Intrinsic safety is implemented across both electronics and mechanical design. Circuit energy is strictly limited to prevent ignition under normal and fault conditions. Enclosure and label materials are selected and tested to eliminate potential ignition sources such as ESD, low-energy sparks and excessive surface temperatures, in accordance with common temperature classes (T4).
Configuration and operator feedback
Each controller is configurable to match application requirements. Ergonomic control layouts reduce operator error while improving safety. Integrated feedback is provided via multi-color LEDs or a sunlight-readable display; custom graphics can be applied to align with site or brand requirements.
Key specifications
Weight: Approx 2.5 kg [5.5 lbs], depending on controls.
Operating temperature: -20 °C [-4 °F] to 60 °C [140 °F]
Protection: Water and dust tight (IP65+) High impact strength (IK7+)
Battery: Built-in, approx. 33 hours operating.
Frequency bands: 868 / 915 / 925 MHz configuration for world wide coverage.
Range: Up to 150 meter [500 feet] line of sight.
Certification (pending): CE Ex II 1D Ex ia IIC T4 Ga II 2D Ex ia IIIB T135°C Db Ta -20~60°C
Technical specifications
- Weight: Approx 2.5 kg (5.5 lbs) depending on controls
- Operating temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Ingress protection: IP65+
- Impact resistance: IK7+
- Battery: Built-in, approx. 33 hours operating
- Frequency bands: 868 / 915 / 925 MHz (worldwide configuration)
- Range: Up to 150 m (500 ft) line of sight
- Certification: Designed for ATEX / IECEx intrinsic safety (certification pending; marking example: CE Ex II 1D Ex ia IIC T4 Ga II 2D Ex ia IIIB T135°C Db Ta -20~60°C)
