panel saw / for composites / for panels / for sample preparation
Labcut® 5000 Series
for panels, for sample preparation
automatic, precision, variable-speed, programmable
Circular saw blade diameter:
Min.: 0 µm
Max.: 304,800 µm
200 µm, 250,000 µm (8 in)

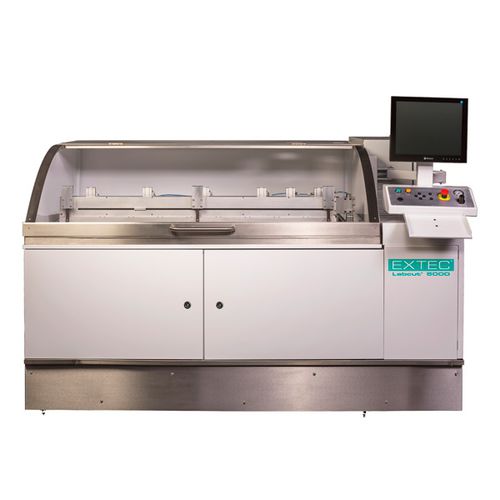

The Extec Labcut® 5000 Series Advanced Precision Composite Plate Saw is built for precise cutting of composite materials for preparation of highly accurate composite test specimens.
The Extec Labcut® 5000 Advanced Series features three standard models accommodating for the cutting of up to 2 foot by 2 foot (600mm by 600mm) or 4 foot by 4 foot (1250mm by 1250mm) composite sheets with maximum thickness of 2.16" (~55 mm). Customized special order units can accommodate greater thickness and are custom designed to fit the application. All units include an easy to use computer based operator interface.
All units include an EZ-TSK (Touch Screen Keypad) for simple user operation.
The main frame is designed for rigidity and high precision cutting. The stainless steel clad work-chamber is easy to clean. The cutting channel is designed to accommodate small pieces of material and specimens. The system is designed to cut the specified material size cleanly with the blade passing beyond the sheet. The system is designed to fully accommodate the size sheet and can cut up to the full width of the sheet. Larger sheets can be accommodated through a hinged flap. A standard 4” (100mm) port is built in the machine for optional dust or mist extraction operations. Custom tailored versions of the machine are possible.
Fully enclosed frame
Slatted work table
Stainless steel work chamber
Laser engraved position reference
Precision fence mechanism for accurate cut
Easy to use computer based control manual
Automatic programmable feed
Variable speed traverse
Variable speed cutting head
Recirculation coolant system with filtration
