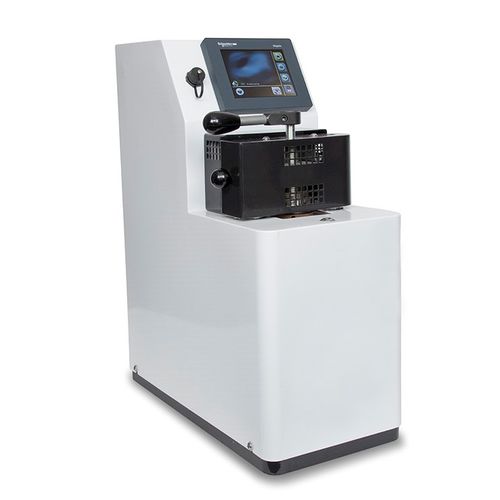

Automatic mounting press Labpress 40-50

for metallographic sampleslaboratory

The Extec Labpress® 40-50 Advanced Convertible Automatic Mounting Press is a versatile convertible system designed to mount samples from 1” – 2”. One heating element supports sample sizes 1”, 1-1/4” a 1-1/2”. A separate heating element supports 2” samples. Equipped with an exclusive heating and cooling system, it has a total cycle time of 5 minutes if the preheating element is in operation. The preheating element keeps the unit at the start temperature for 20 minutes eliminating the need to heat from room temperature to curing temperature each cycle. An audible alert notifies users when cycle is complete. The Extec Labpress® Advanced Automatic Mounting Press features a single EZ-TSK (Touch Screen Keypad) for simple user operation. Users can set the temperature, pressure, heating, and cooling parameters from a central screen. The unit has 4 pressure modes allowing users to modify based on the mounting compound or variety of parts being mounted. The unit arrives with preset programs for common compression mounting compounds and is equipped with a USB port for simple saving and loading of customized programs.
