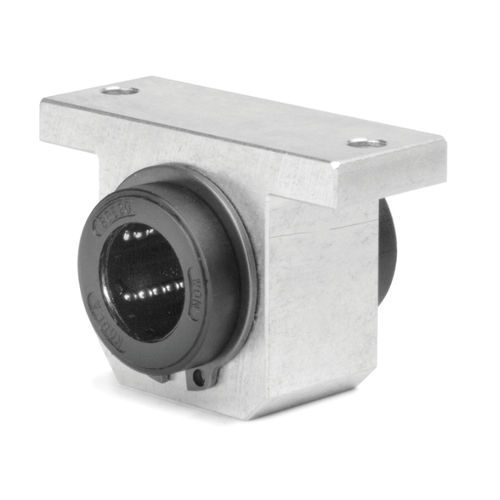

Ball bushing block-bearing EALGS seriesaluminumclosed-structure
Add to favorites
Compare this product
Characteristics
- Rolling element
- ball bushing
- Material
- aluminum
- Other characteristics
- closed-structure
- Inside diameter
Min.: 12 mm
(0.47 in)Max.: 50 mm
(1.97 in)- Outside diameter
Min.: 22 mm
(0.87 in)Max.: 75 mm
(2.95 in)- Length
Min.: 52 mm
(2.05 in)Max.: 135 mm
(5.31 in)
Description
The IALGS series is a ball bushing pillow block that is constructed with fixing screws fabricated according to DIN 912-8.8 standards and specifications, and spring washers made in accordance to DIN 7980. It is also equipped with a bear fixing installed to the enclosure.
The frame’s angle considers the linear ball bearing to be used.
